Sraith ZP Corn Súchán Fholúis Trom Dleacht, Cuibheoir & Lúibín Maolán

Corn Súchán Folús Dleachta Trom Sraith ZP Le Cuibheoir & Lúibín Maoláin (Ø32~Ø340)

Is éard atá i gceist le Corn Shúchán Fholúis Trom-Dleachta Sraith ZP Le Cuibheoir & Lúibín Maolán (Ø32~Ø340) ná réiteach láimhseála folúis comhtháite atá deartha chun freastal ar riachtanais éilitheacha greim thionsclaíoch. Comhtháthaíonn sé an croí-chupán súchán tromshaothair, an t-adapter eochair-chomhéadan agus an lúibín maolánach riachtanach isteach i gceann amháin, a chlúdaíonn raon leathan méideanna, agus tá sé deartha chun bonn-aonad iontaofa agus inoiriúnaithe i bhfolús a sholáthar chun píosaí oibre trom, neamhrialta nó mín a láimhseáil.

Príomhghnéithe:
Inoiriúnaitheacht do choinníollacha ard-ualaigh: Baineann an croí-choincheap dearadh le hardteorainn acmhainn iompair ualaigh an chórais folúis a ardú chun freastal ar riachtanais láimhseála an phíosa oibre trom thar acmhainn na ngnáthchupán súchán agus freastal ar dhúshláin láidreachta na láithreán tionsclaíochta.

Clúdach leathan speictrim: Soláthraíonn sé éagsúlacht de roghanna comhlacht cupán súchán ó mhéideanna níos lú go réimsí ultra-mhór (a chlúdaíonn an raon Ø32 go Ø340), ar féidir leo méideanna éagsúla workpiece, comhrianta agus riachtanais dáileadh meáchain a mheaitseáil go solúbtha.

Comhéadan adapter comhtháite: Feidhmíonn an t-adapter caighdeánach mar mhol aistrithe tiomnaithe idir an comhlacht cupán súchán agus an córas bhfolús anuas (cosúil le gineadóir, dáileoir) nó actuator (cosúil le deireadh lámh an robot), ag cinntiú nasc cosán gáis éifeachtach agus comhoiriúnacht fhisiceach.

Meicníocht maoláin leabaithe: Is é an eilimint lúibín maolán tógtha croílár an dearadh. Is é a luach lárnach ná an fuinneamh cinéiteach tionchair a ionsú ag an nóiméad teagmhála agus an tonnchrith íseal-minicíochta le linn oibriú, ag laghdú go mór an strus meicniúil ar dhromchla an phíosa oibre, struchtúr an chupáin shúchán agus an trealamh in aghaidh an tsrutha.

Meaitseáil comhtháthú córais: Tugann dearadh an réitigh fhoriomlán tosaíocht d'áisiúlacht an chomhtháthaithe le hardáin uathoibrithe príomhshrutha (cosúil le foircinn lámh robot agus sleamhnáin iarnróid treorach), ag laghdú castacht an oiriúnú innealtóireachta le haghaidh imscaradh allamuigh.

Neart agus marthanacht: Díríonn roghnú comhpháirteanna agus dearadh struchtúrach ar fheidhmíocht seirbhíse fadtéarmach a fheabhsú i dtimthriallta trom-ualach leanúnach, imbhuailtí féideartha agus timpeallachtaí tionsclaíocha tipiciúla, ag cinntiú timthriall oibriúcháin cobhsaí.

Ráthaíocht feidhmíochta séalaithe folúis: Tá struchtúr liopaí an chupáin shúchán agus foirmiú ábhar optamaithe le haghaidh feidhmeanna trom-ualach, ag iarraidh stát séalaithe éifeachtach i bhfolús a bhaint amach agus a chothabháil ar dhromchlaí casta (rud a cheadaíonn méid áirithe míchothromaíochta).

Cásanna feidhmchláir uilíocha: Déanann coincheap dearaidh na sraithe seo go bhfuil sé oiriúnach go nádúrtha le haghaidh cásanna tionsclaíocha éagsúla a bhaineann le leatháin miotail, ábhair chomhchodacha móra, aonaid pacáistithe troma, múnlaí, etc. a dteastaíonn greim agus scaoileadh láidir agus milis orthu.

Ríomhphost: manager@cktworld.com

Íoslódáil

ROIMHE:Níl aon alt roimhe seo
AR Aghaidh:Corn Súchán Folús Dleacht Trom Sraith ZP (Ø32~Ø340)

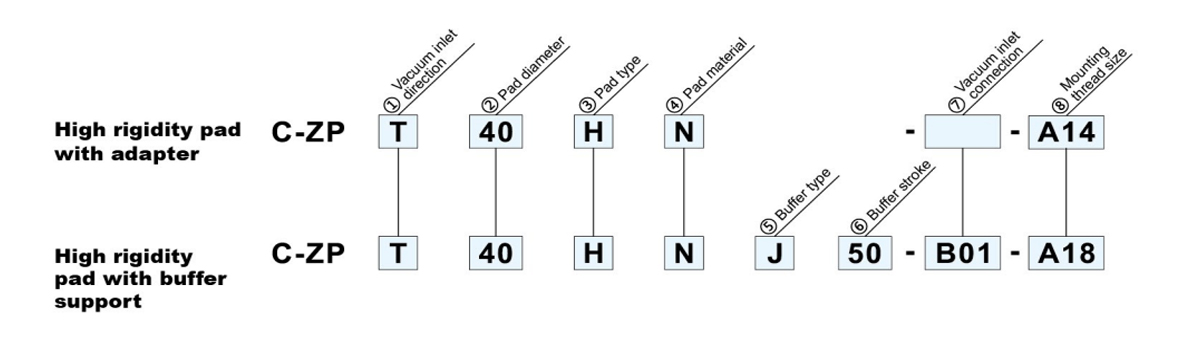

Struchtúr Inmheánach
Príomhthoisí (mm)
Déan Teagmháil Linn

④Pad ábhar □

② Pad trastomhas(mm) ○/③Cineál ceap☆

mé*

NBR

100

125

150

200

250

300

340

Siicone rubair

Ø32

Ø40

Ø50

Ø63

Ø80

Ø100

Ø125

Ø150

Ø200

Ø250

Ø300

Ø340

Maol le easnacha

●

①

ionraon folúis
treo HB

2 bhuille

●

Le adapter

Ingearach

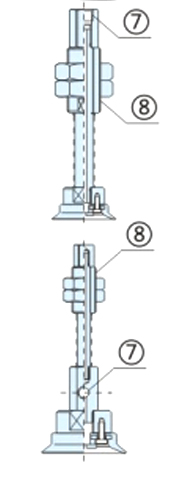

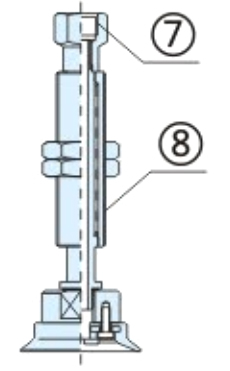

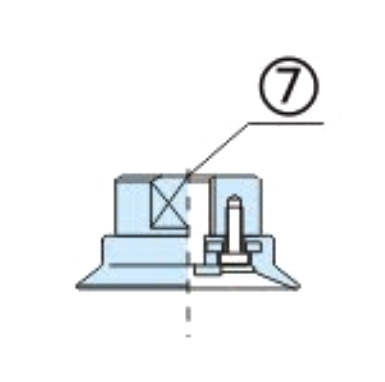

⑦Ceangal inlet folúis

M5×0.8

●

M8×1.25

●

B10

M10×1.5

●

B12

M12×1.75

●

B16

M16×1.5

●

B18

M18×1.5

●

B04

Rp1/2

●

⑧ Snáithe gléasta

A14*

M14×1.5

●

A16

M16×1.5

●

cliathánach

M8×1.25

●

B10

M10×1.5

●

B12

M12×1.75

●

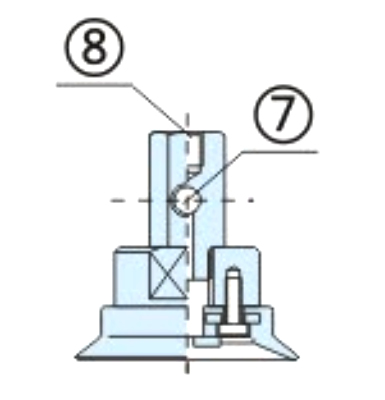

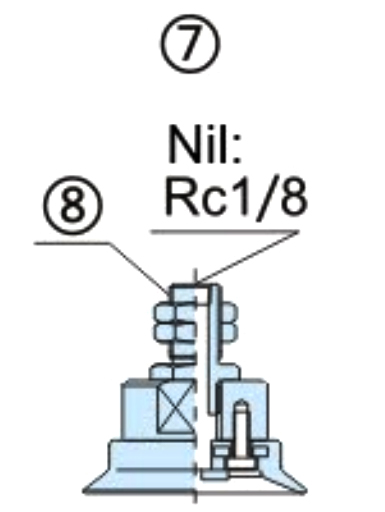

⑦ inlet bhfolús

B01

Rc1/8

●

Ø4

●

Ø6

●

Ø8

●

⑧ Snáithe gléasta

M6×1.0

●

M8×1.0

●

M6×1.0

●

M8×1.25

●

Le maolán saincheaptha

⑤
●

Rothlach

●

Ní féidir
rothlú

●

Ingearach

⑥ stócach maolánach

10 mm

●

20 mm

●

30 mm

●

50 mm

●

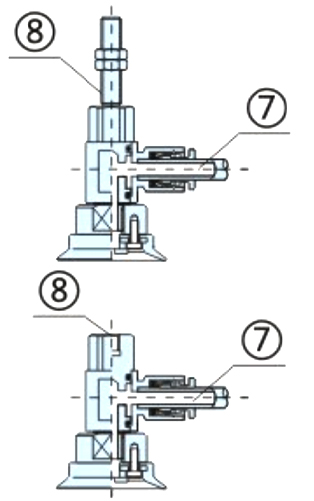

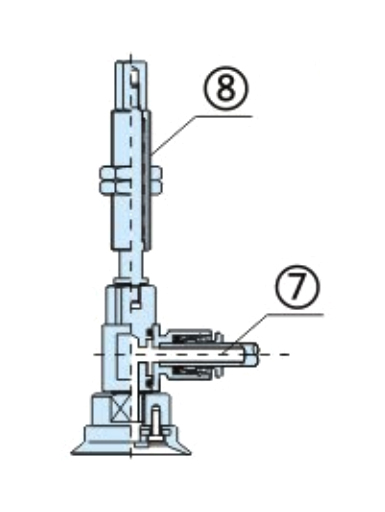

⑦ inlet bhfolús connection◇

M5×0.8

●

B01

Rc1/8

●

cliathánach

Ø4

●

Ø6

●

Ø8

●

⑧

A14

M14×1.0

●

Le maolán

⑤
●

●

Ingearach

⑥ stócach maolánach

20 mm

●

25 mm

●

50 mm

●

75 mm

●

cliathánach

100

100 mm

●

⑦

B01

Rc1/8

●

B02

Rc1/4

⑧ Snáithe gléasta size

A18

M18×1.5

●

A22

M22×1.5

●

A30

M30×1.5

* A14-3: Suiteáil saincheaptha de chineál scriú leathnaithe

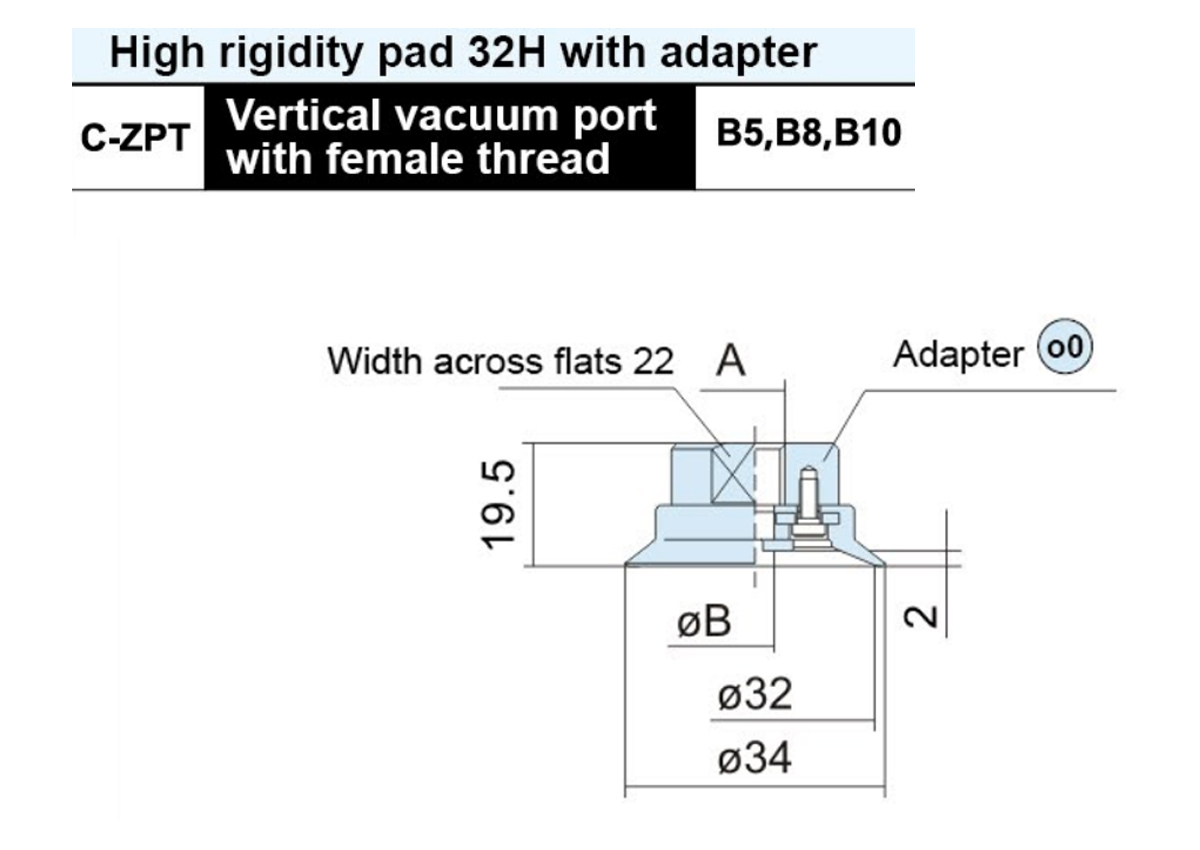

Model	A	ØB	Adaptor Model
C-ZPT32H □ -B5	M5×0.8	4.2	ZPT0-B5
C-ZPT32H □ -B8	M8×1.25	5	ZPT0-B8
C-ZPT32H □ -B10	M10×1.5	5	ZPT0-B10
□ Pad material:NBR(N)S,Silicone(S)

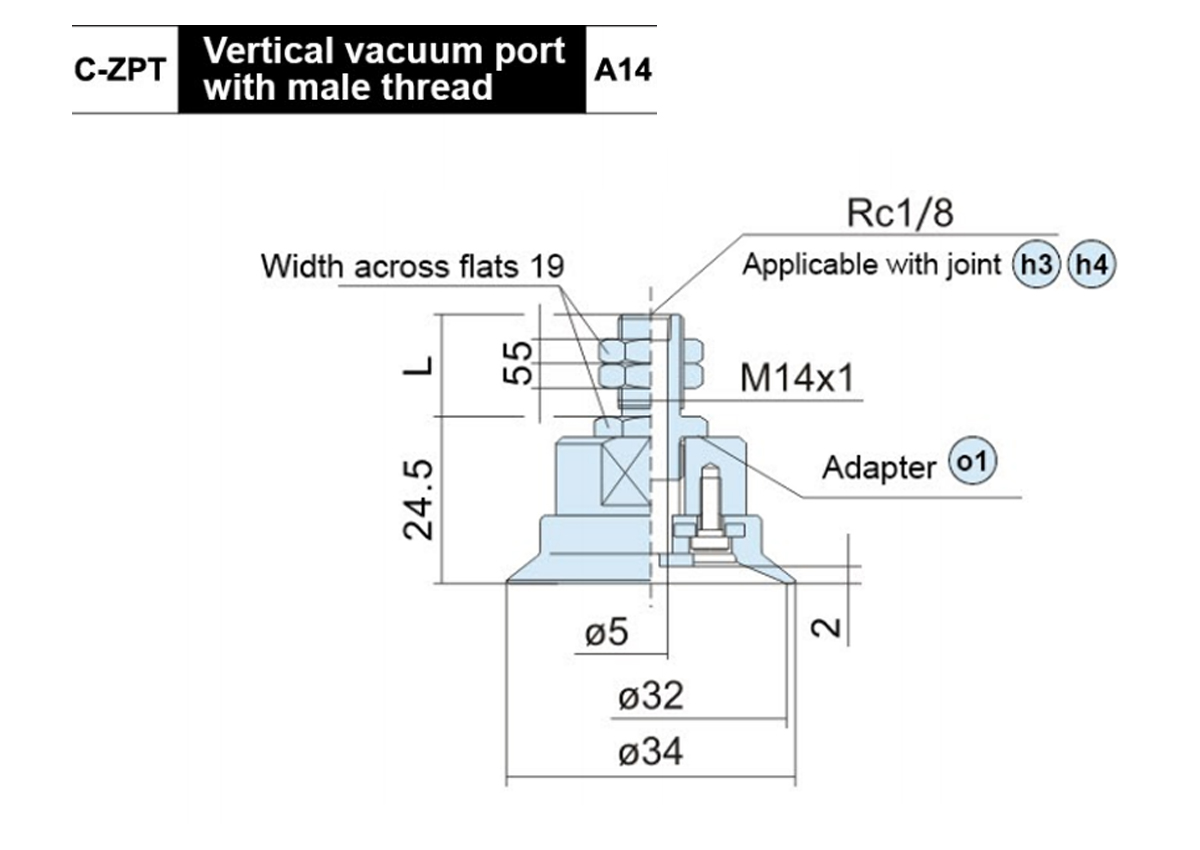

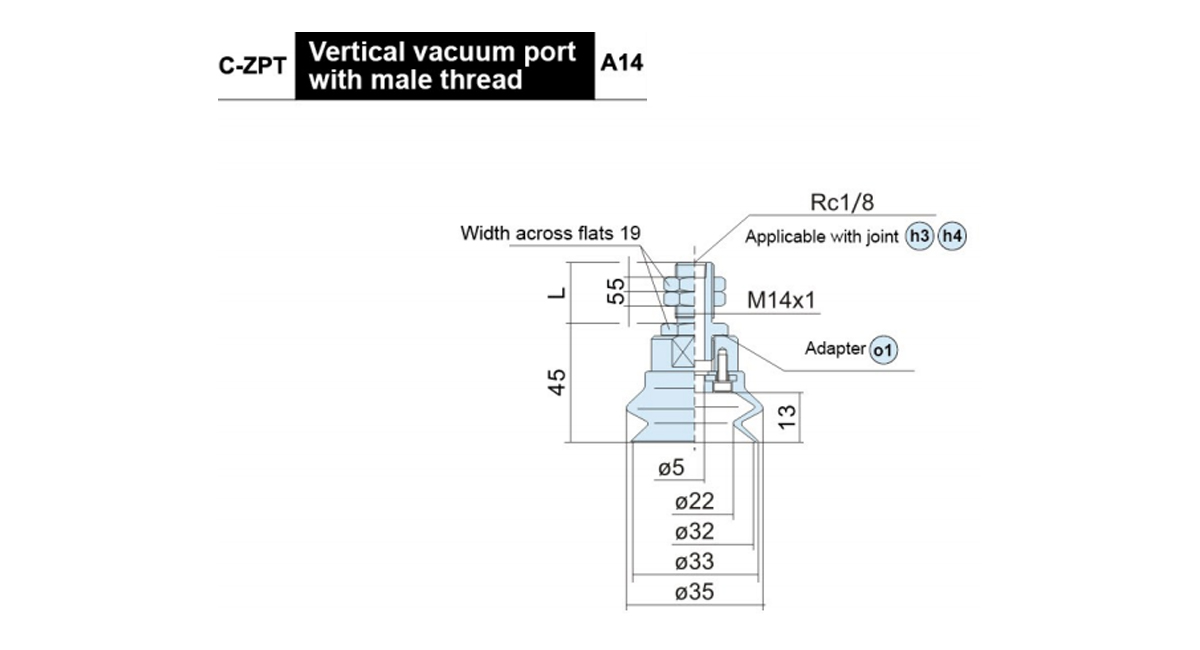

Model	L	Adaptor Model
C-ZPT32H □- A14	25	ZPT0-A14
C-ZPT32H □- A14-3	40	ZPT0-A14-3
□ Pad material:NBR(N)S.Silicone(S)

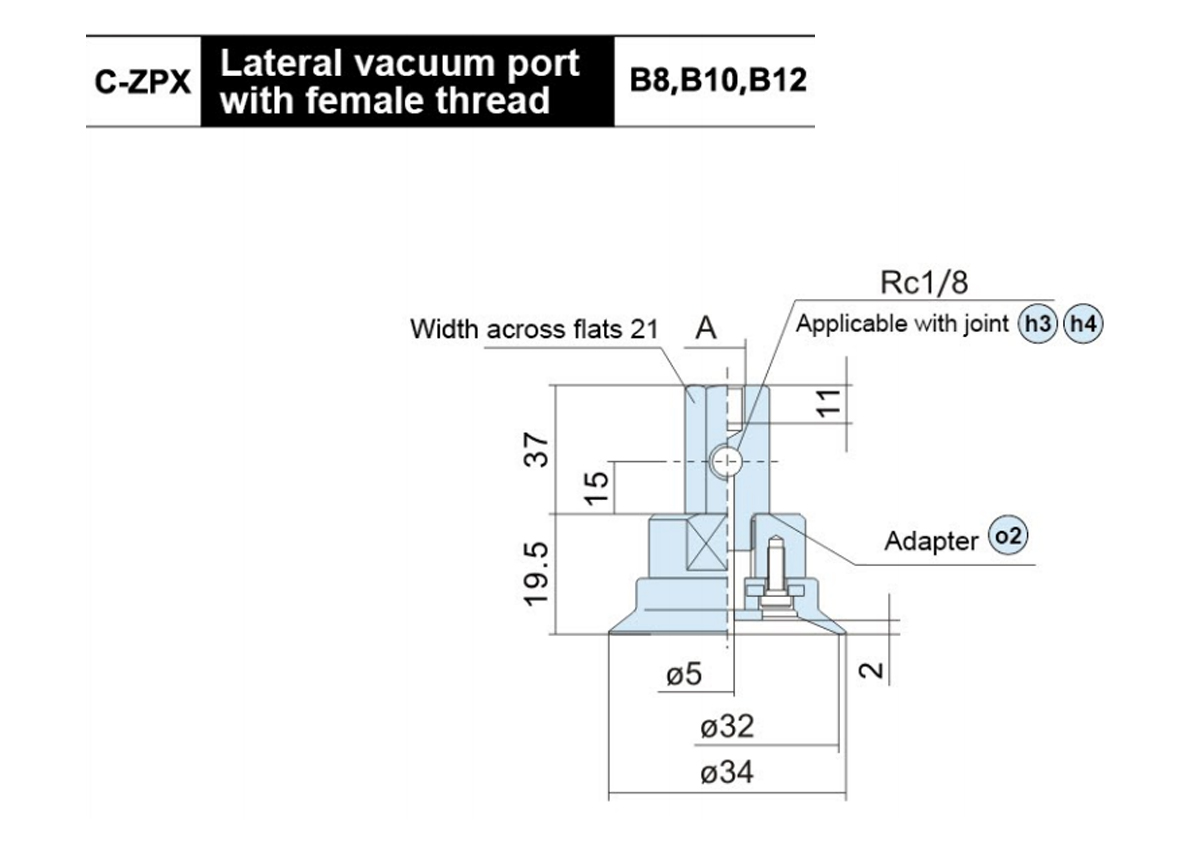

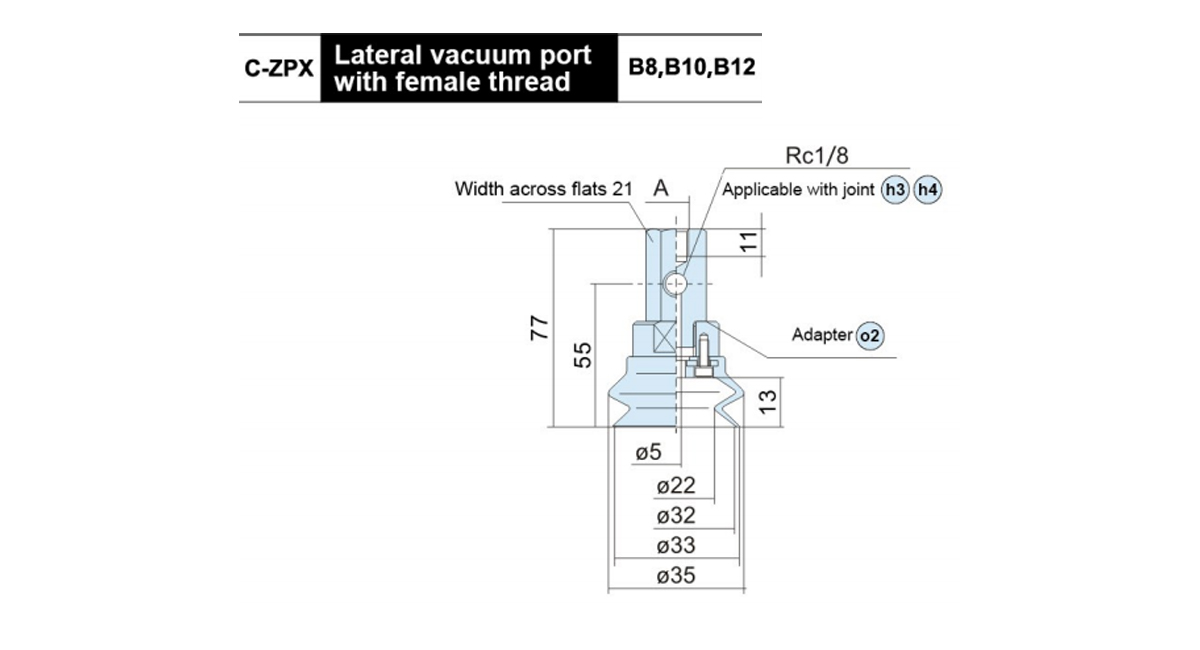

Model	A	Adaptor Model
C-ZPX32H □- B8	M8×1.25	ZPX0-B01-B8
C-ZPX32H □- B10	M10×1.5	ZPX0-B01-B10
C-ZPX32H □- B12	M12×1.75	ZPX0-B01-B12
□Pad material:NBR(N)S,Silicone(S)

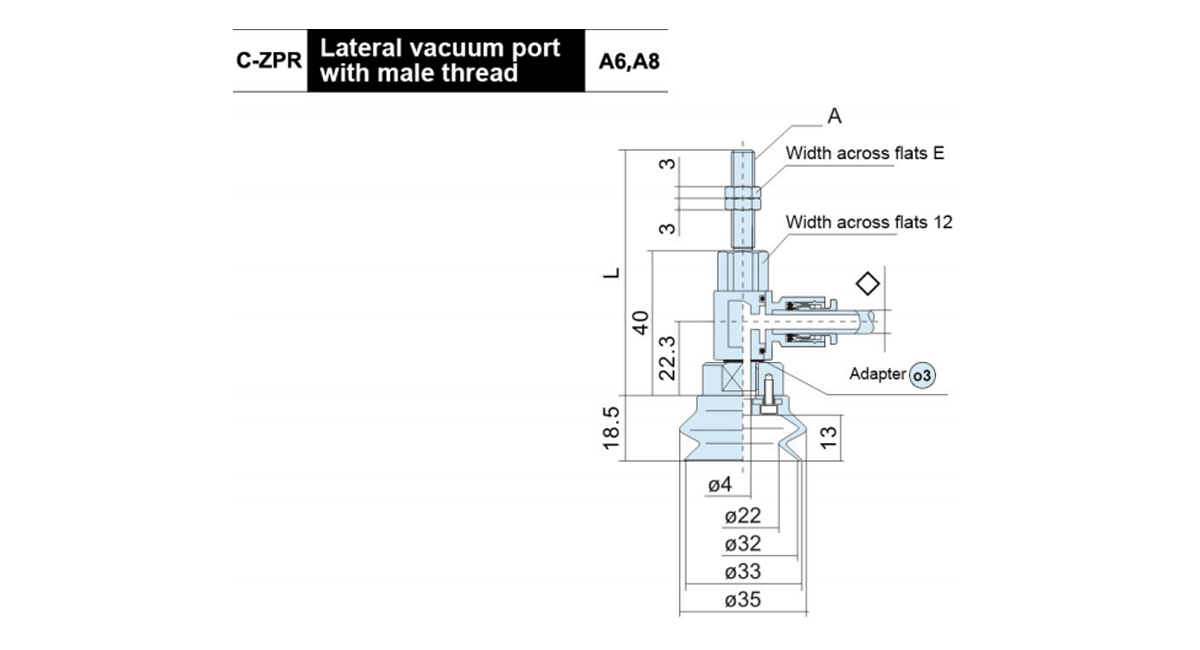

Model	A	E	L	Adaptor Model
C-ZPR32H □-◇ -A6	M6×1.0	8	66	ZPROH-◇-A6
C-ZPR32H □-◇- A8	M8×1.0	12	56	ZPROH-◇-A8
□Pad material:NBR(N)S,Silicone(S) ◇Vacuum inlet connection:04,06,08

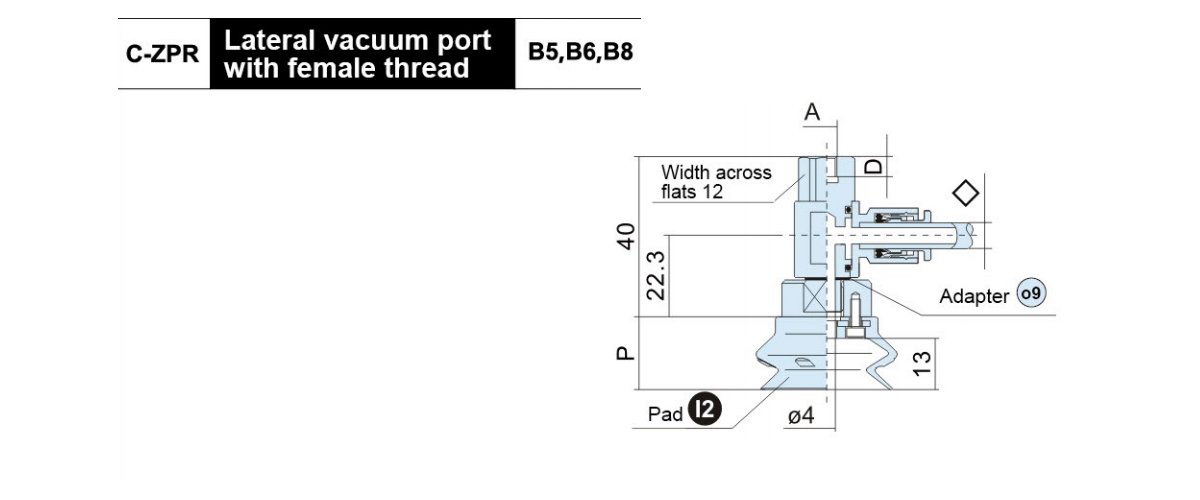

Model	A	D	Adaptor Model
C-ZPR32H □-◇- B5	M5×0.8	5	ZPROH-◇-B5
C-ZPR32H □-◇- B6	M6×1.0	6	ZPROH-◇-B6
C-ZPR32H □-◇- B8	M8×1.25	8	ZPROH-◇-B8
□Pad material:NBR(N)S,Silicone(S) ◇Vacuum inlet connection:04,06,08

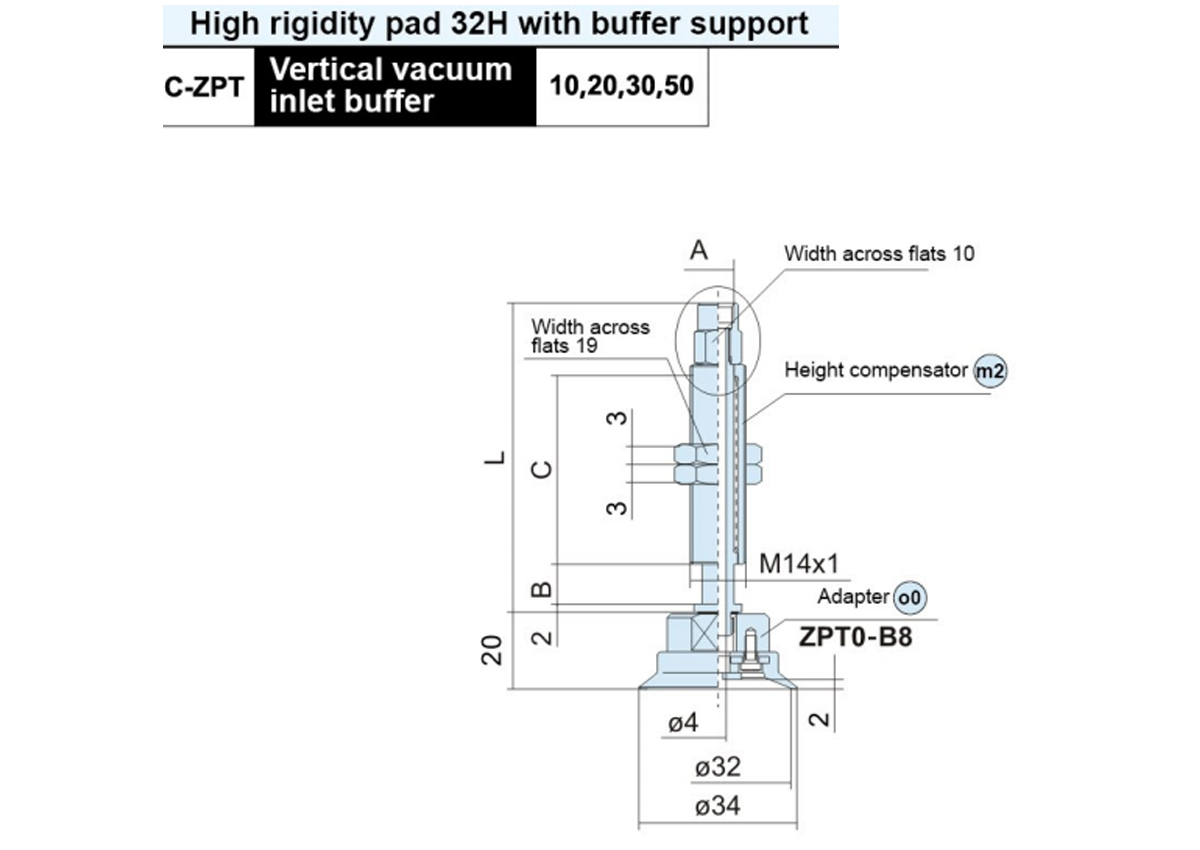

Model	A	B	C	L	m2 O0 Buffer Support Model
C-ZPT32H □● 10-B5-A14	M5×0.8	10	50	77	ZPT0-●10-B5-A14
C-ZPT32H □● 20-B5-A14		20		81	ZPT0-●20-B5-A14
C-ZPT32H □● 30-B5-A14		30		91	ZPT0-●30-B5-A14
C-ZPT32H □● 50-B5-A14		50	75	136	ZPT0-●50-B5-A14
C-ZPT32H □● 10-B01-A14	Rc1/8	10	50	78.5	ZPT0-●10-B01-A14
C-ZPT32H □● 20-B01-A14		20		84	ZPT0-●20-B01-A14
C-ZPT32H □● 30-B01-A14		30		94	ZPT0-●30-B01-A14
C-ZPT32H □● 50-B01-A14		50	75	139	ZPT0-●50-B01-A14
□Pad material:NBR(N)S,Silicone(S) ● Height compensator type:Rotative(J) Unable to rotate(K)

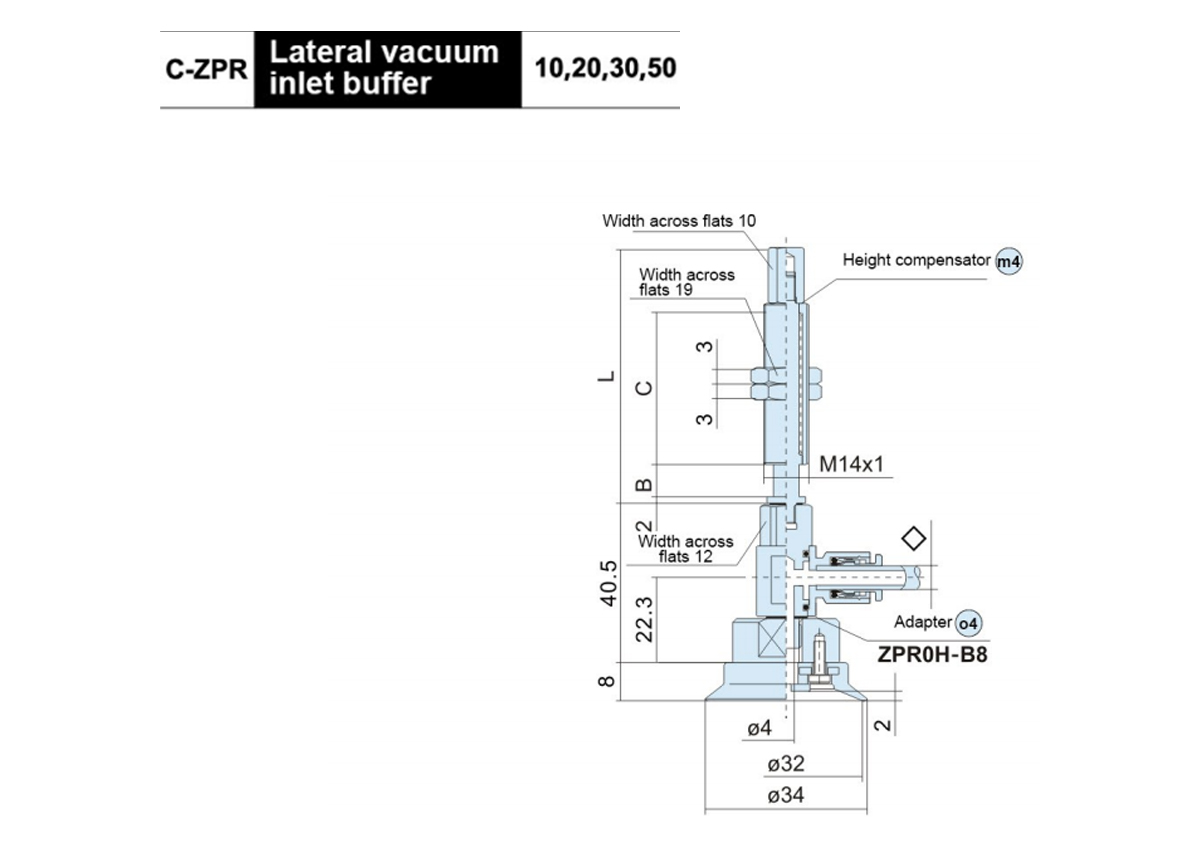

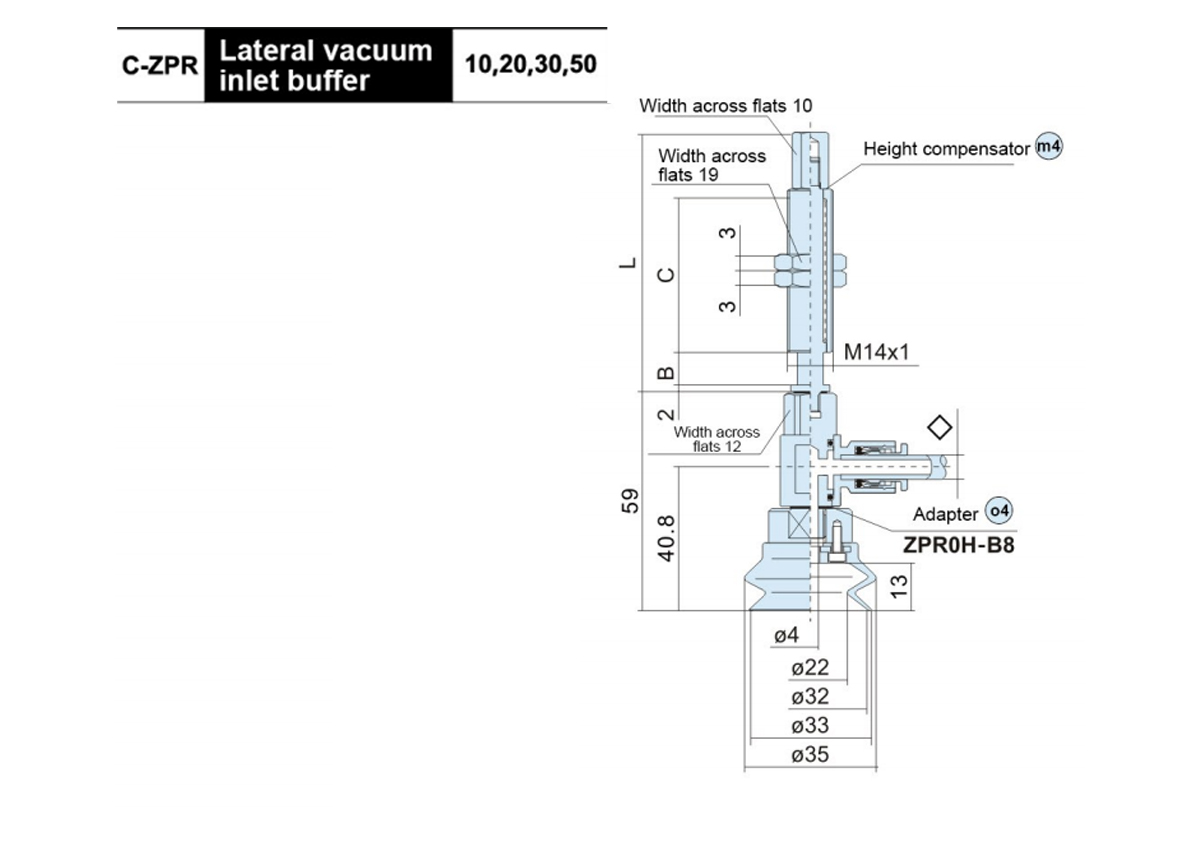

Model	B	C	L	m4 O4 Buffer Support Model
C-ZPR32H □● 10 -◇ -A14	10	50	80	ZPR0 -●10-◇-A14
C-ZPR32H □● 20 -◇- A14	20		77	ZPRO-●20-◇-A14
C-ZPR32H □● 30 -◇ -A14	30		87	ZPRO-●30-◇-A14
C-ZPR32H □● 50 -◇- A14	50	75	132	ZPR0- ●50-◇-A14
□ Pad material:NBR(N)S,Silicone(S) ◇ Vacuum inlet connection:04,06,08 ● Height compensator type:Rotative(J) Unable to rotate(K)

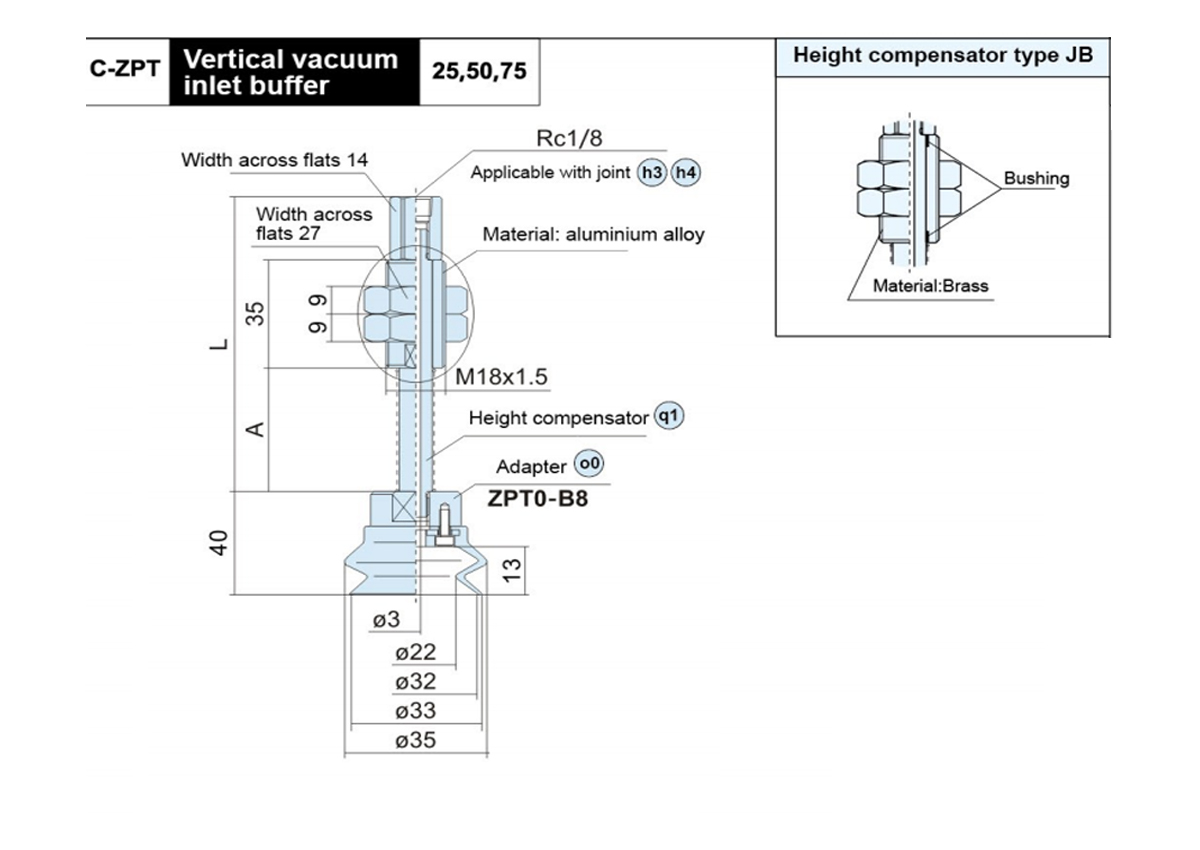

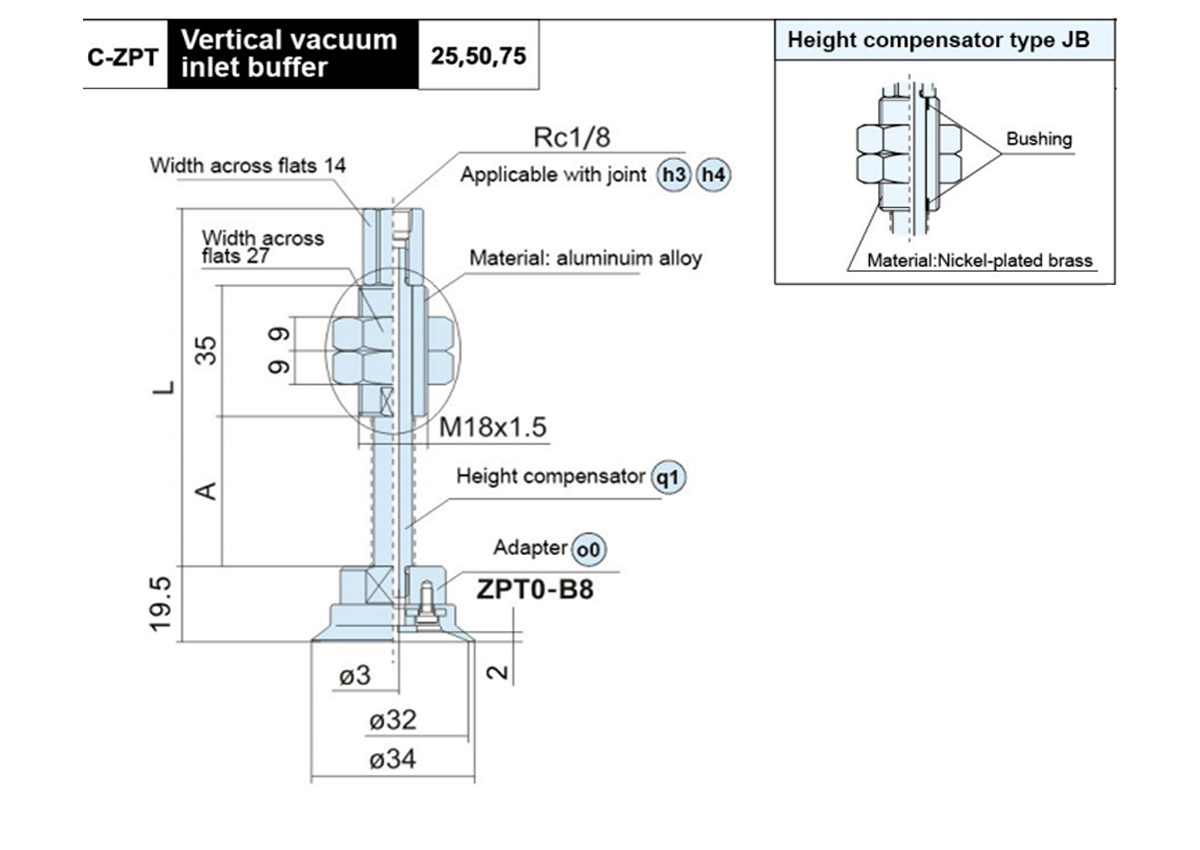

Model	A	L	q1 O0 Buffer Support Model
C-ZPT32H □● 25-B01-A18	40	95.5	ZPB0 ●25-B01-A18
C-ZPT32H □● 50-B01-A18	75	130.5	ZPBO ●50-B01-A18
C-ZPT32H □● 75-B01-A18	111	166.5	ZPB0 ●75-B01-A18
□ Pad material:NBR(N)S,Silicone(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

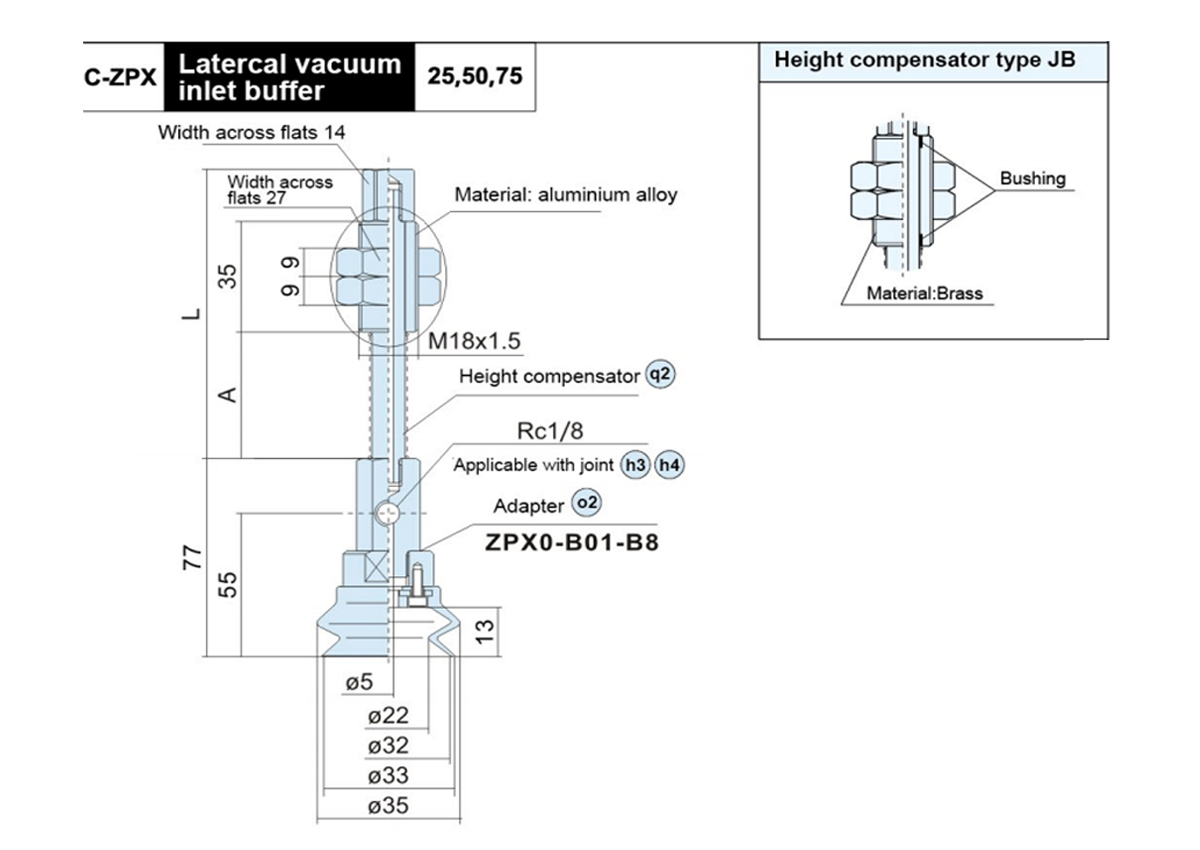

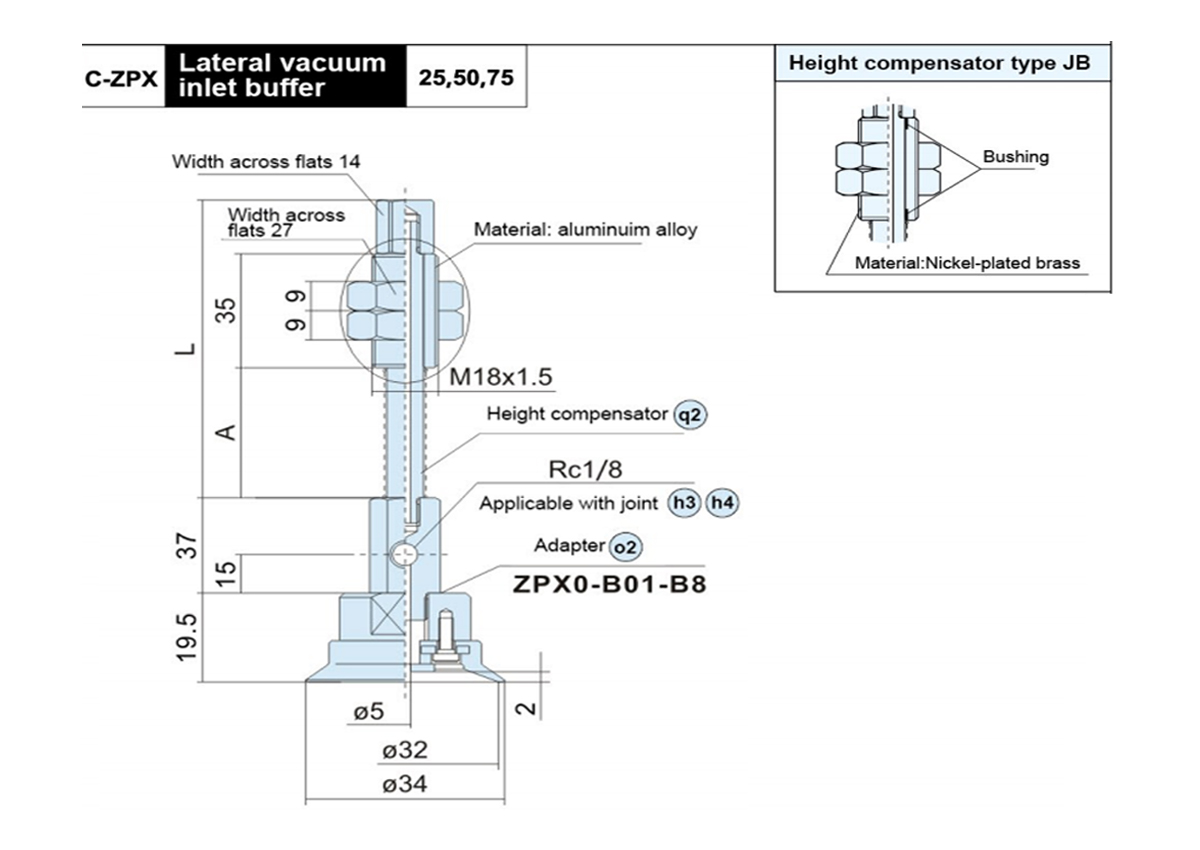

Model	A	L	q2 O2 Buffer Support Model

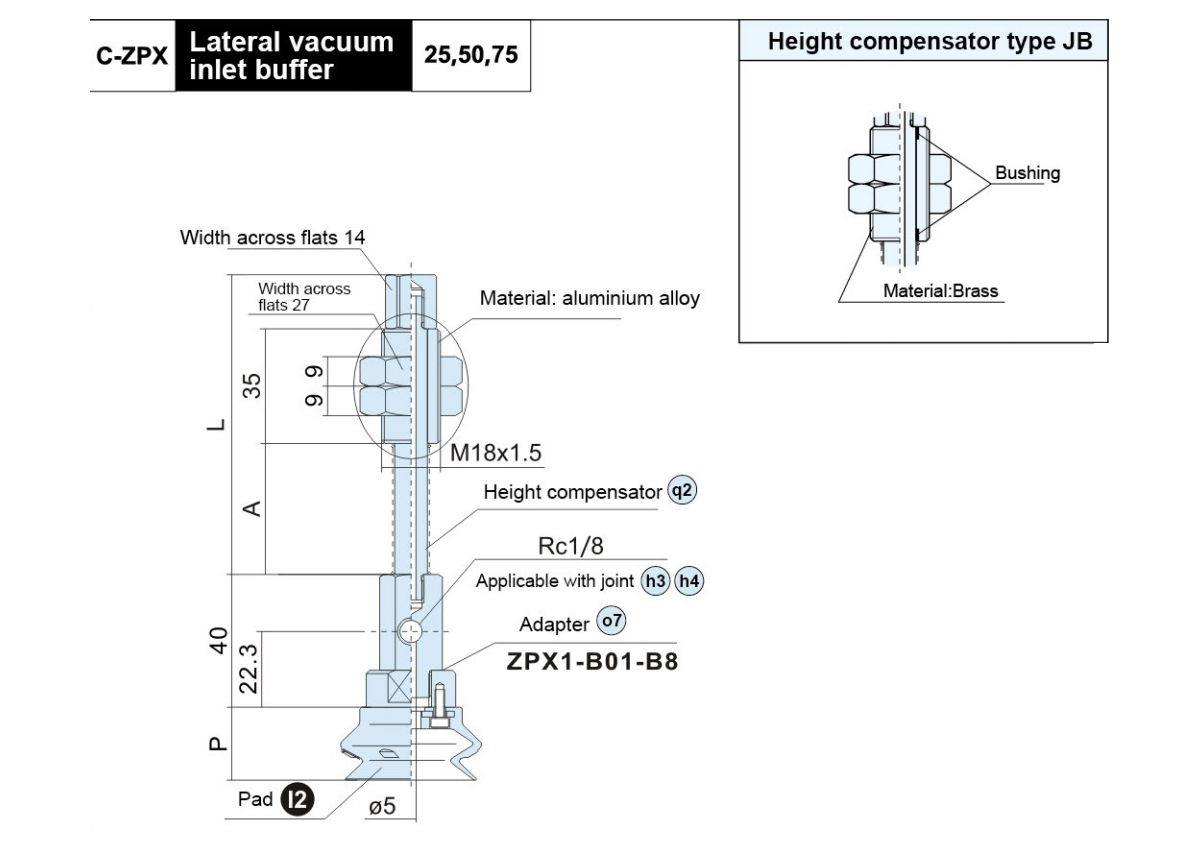

C-ZPX32H □● 25-B01-A18	40	91	ZPX0 ●25-B01-A18
C-ZPX32H □● 50-B01-A18	75	126	ZPX0 ●50-B01-A18
C-ZPX32H □● 75-B01-A18	111	162	ZPX0 ●75-B01-A18
□ Pad material:NBR(N)S,Silicone(S) ●Height compensator type:Aluminium alloy(J) Brass(JB)

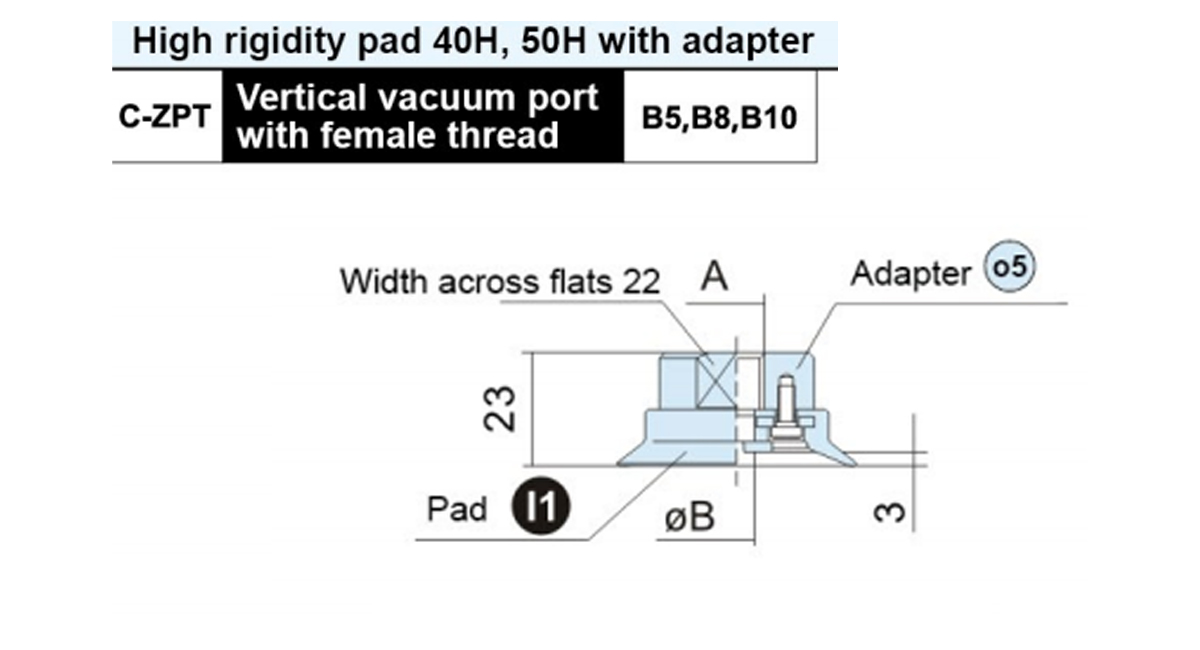

Model	A	ØB	Adaptor Model
C-ZPT ○ H□- B5	M5×0.8	4.2	ZPT1-B5
C-ZPT ○ H□- B8	M8×1.25	5	ZPT1-B8
C-ZPT ○ H□- B10	M10×1.5	5	ZPT1-B10
○ Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S)

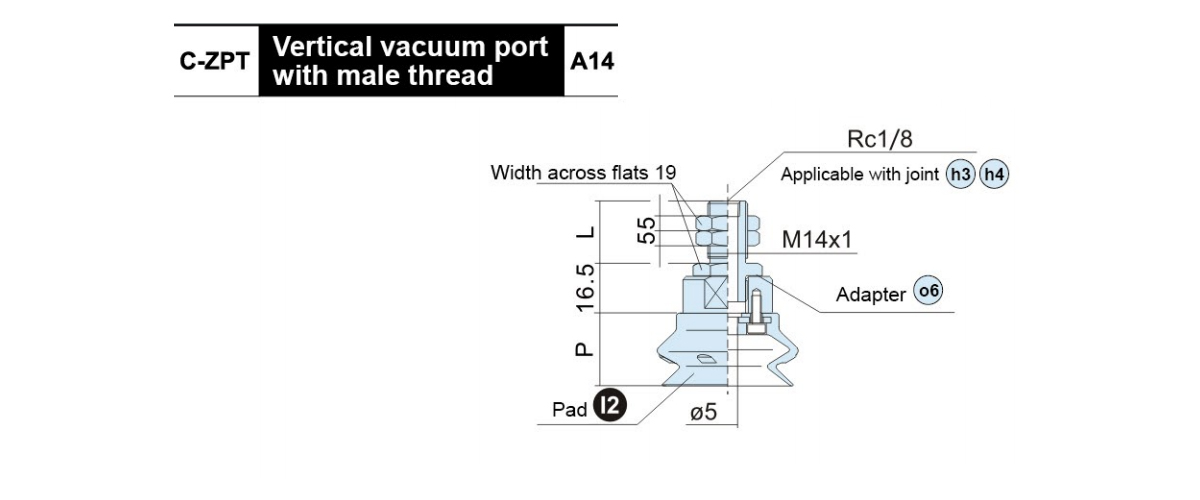

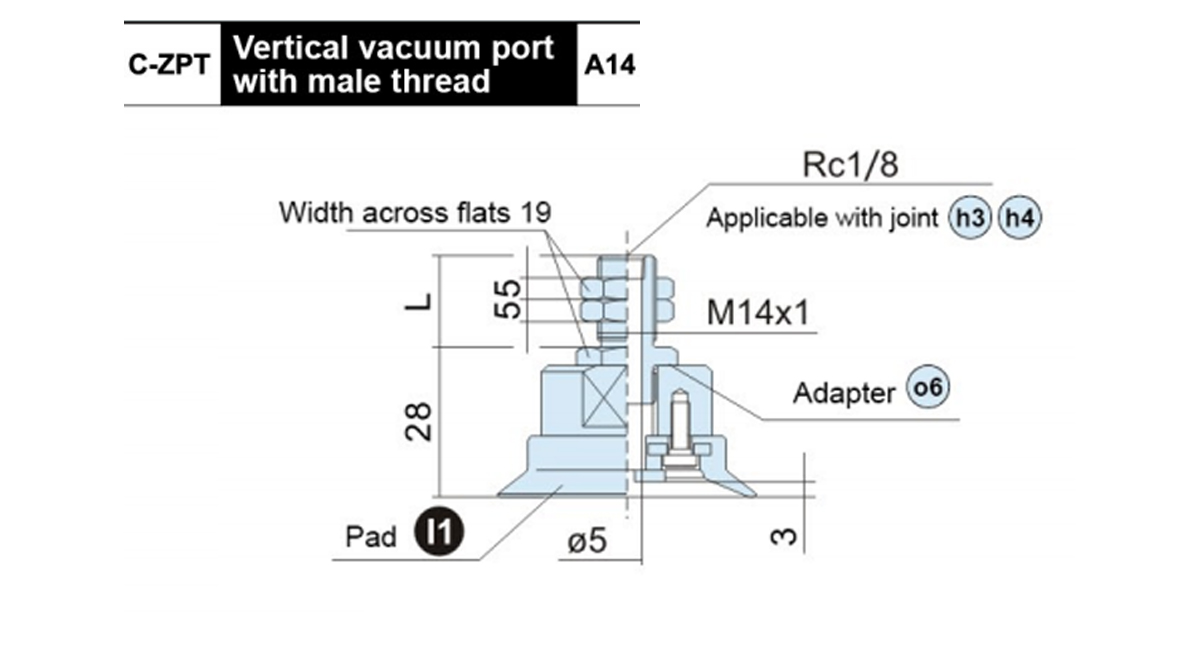

Model	L	Adaptor Model
C-ZPT ○ H□ -A14	25	ZPT1-A14
C-ZPT ○ H□- A14-3	40	ZPT1-A14-3
○ Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S)

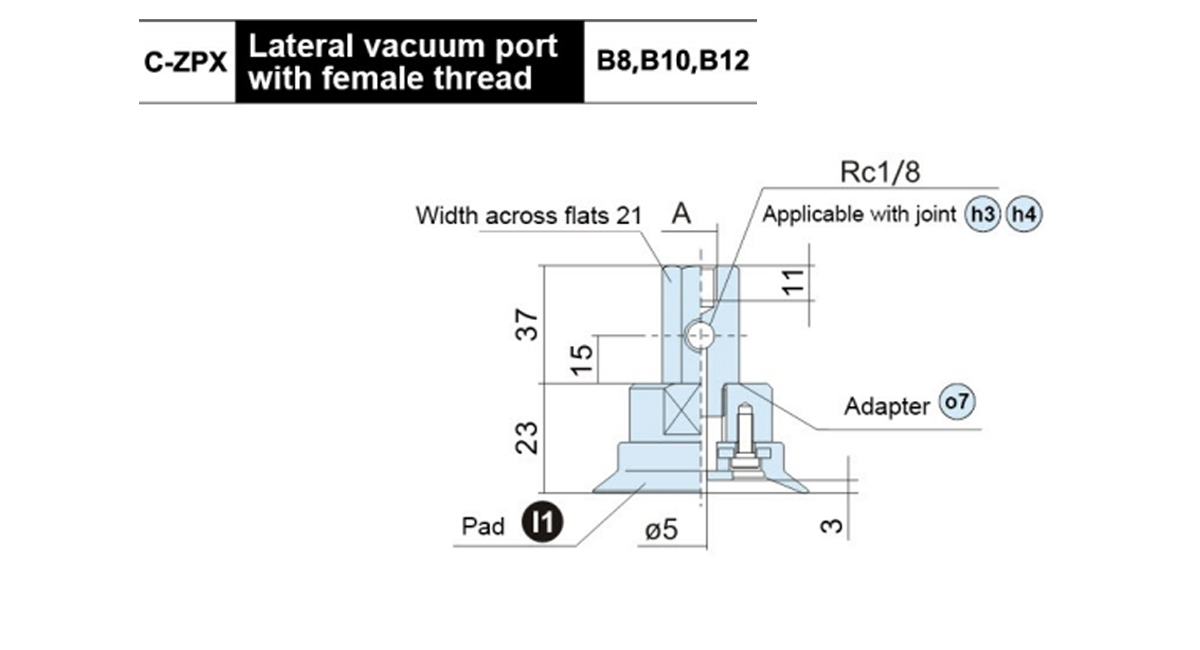

Model	A	Adaptor Model
C-ZPX ○ H □- B8	M8×1.25	ZPX1-B01-B8
C-ZPX ○ H □- B10	M10×1.5	ZPX1-B01-B10
C-ZPXH □- B12	M12×1.75	ZPX1-B01-B12
○Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S)

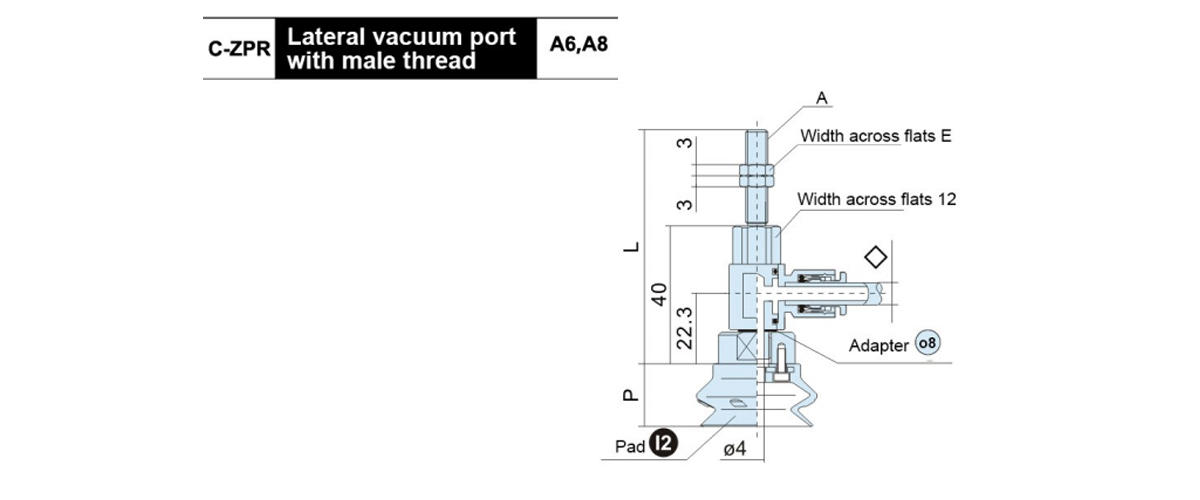

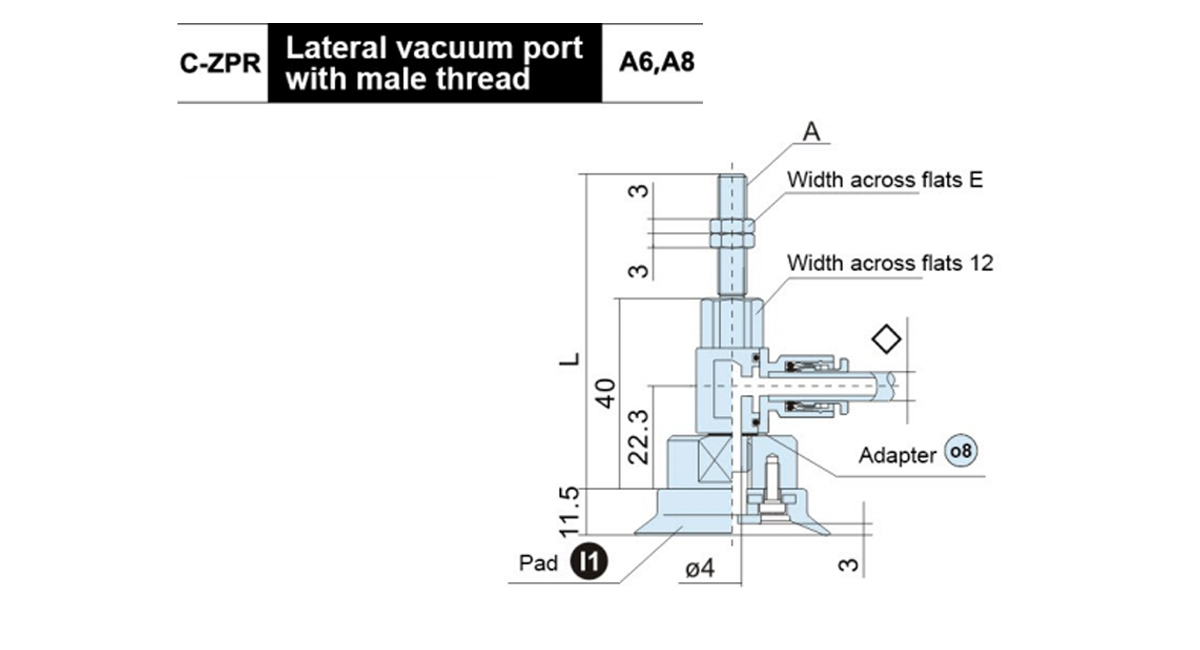

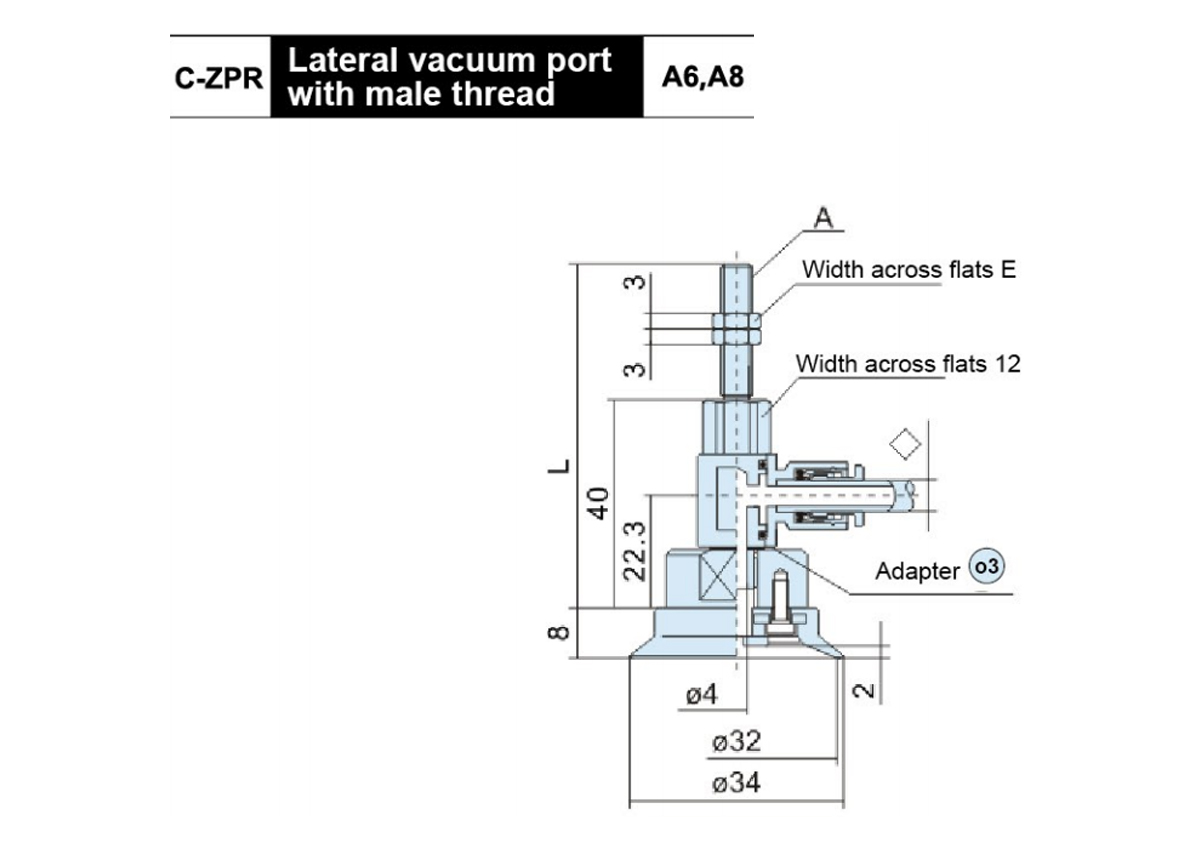

Model	A	E	L	Adaptor Model
C-ZPR ○ H □-◇ -A6	M6×1.0	8	66	ZPR1H -◇-A6
C-ZPR ○ H □-◇ -A8	M8×1.0	12	56	ZPR1H -◇-A8
○Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S) Vacuum inlet connection:06,08

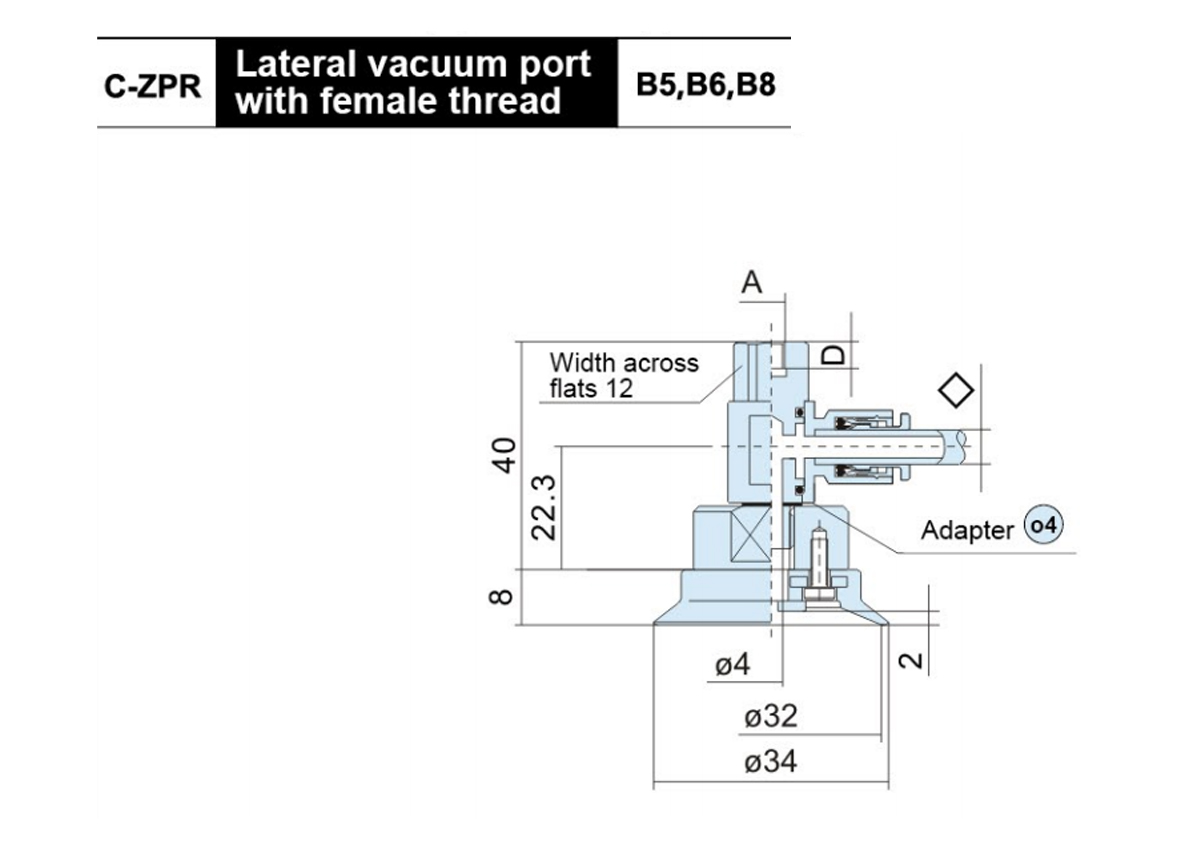

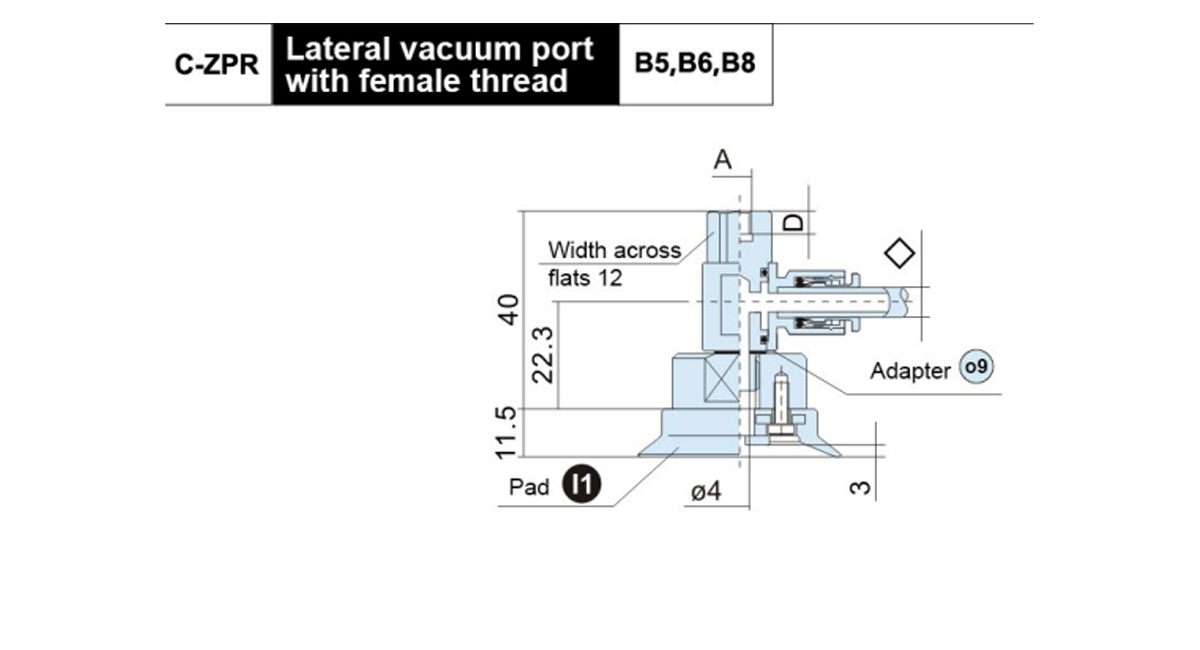

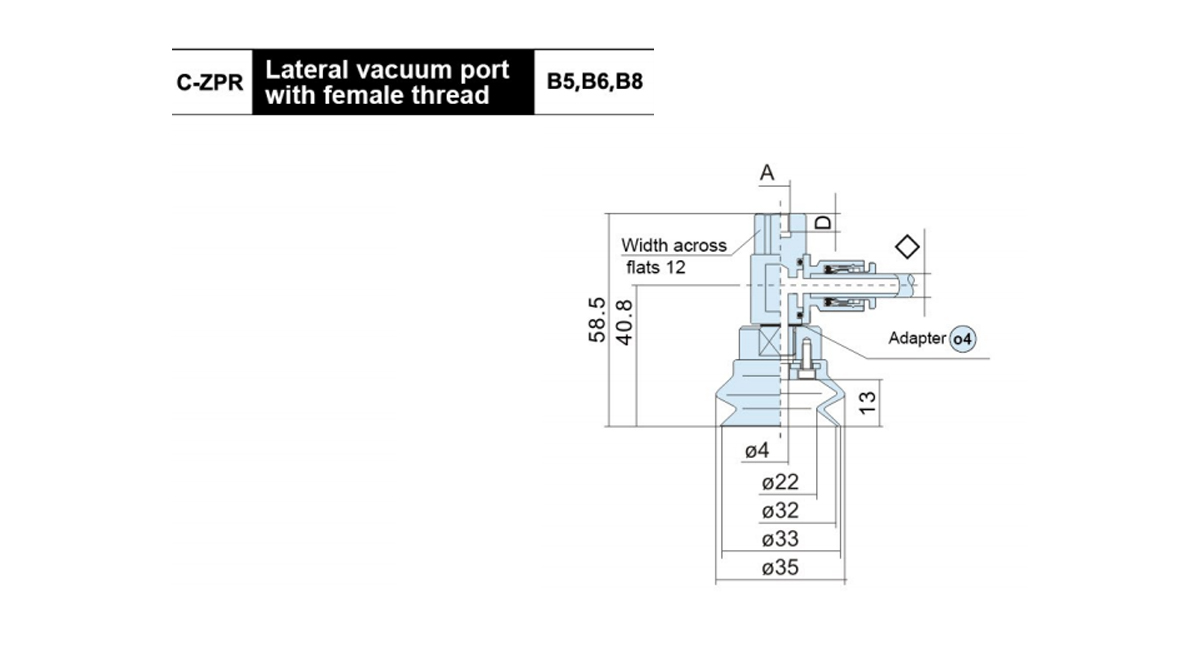

Model	A	D	Adaptor Model
C-ZPR ○ H□-◇- B6	M6×1.0	6	ZPR1H -◇-B6
C-ZPR ○ H□-◇ -B8	M8×1.25	8	ZPR1H -◇-B8
○Pad diameter symbol:40,50 □ Pad material:NBR(N)Silicone rubber(S) ◇Vacuum inlet connection:06,08

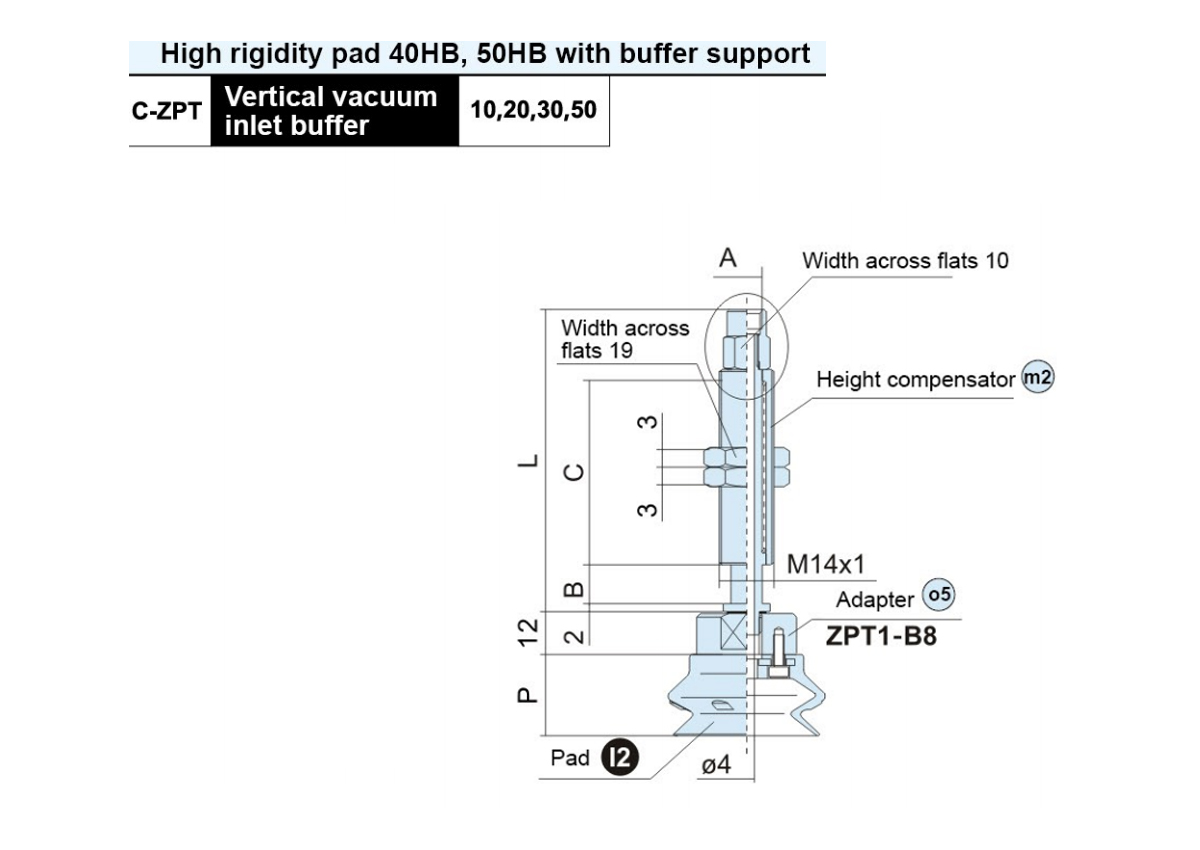

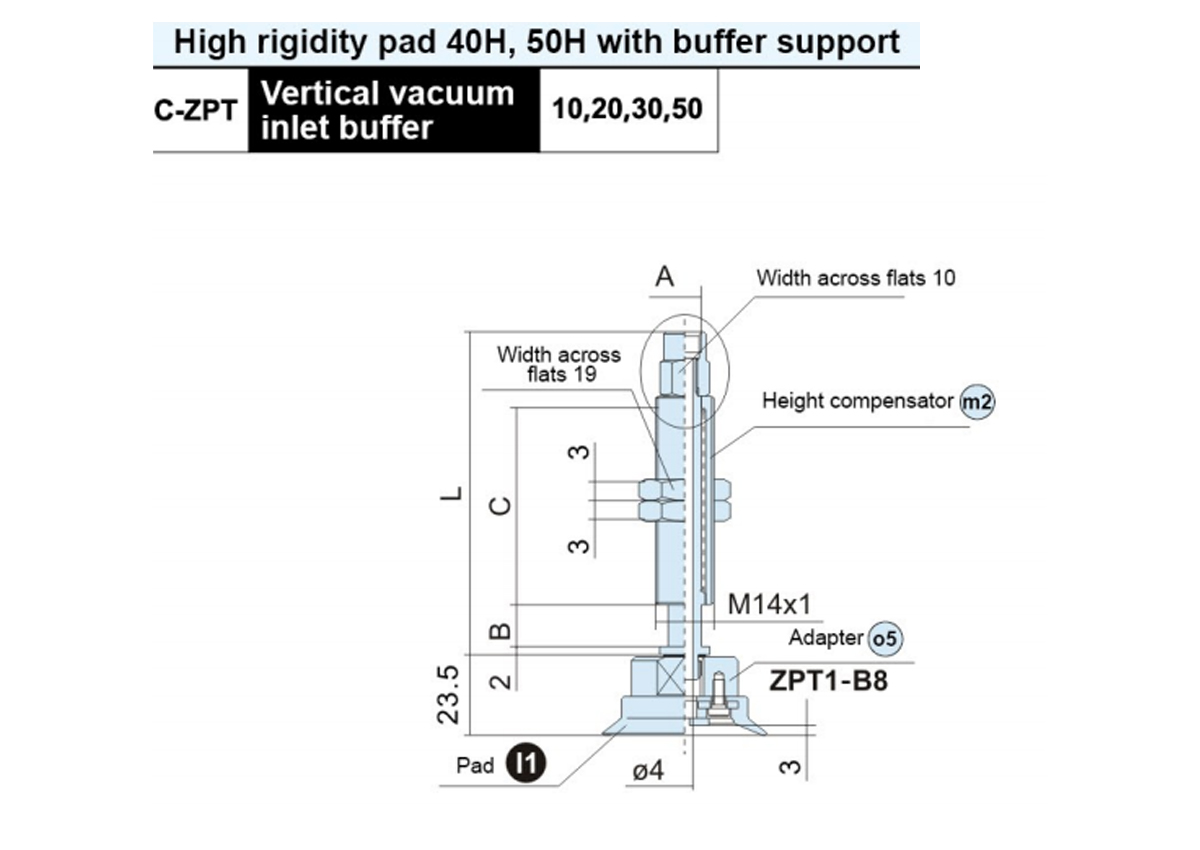

Model	A	B	C	L	m2 O5 Buffer Support Model
C-ZPT ○ H□● 10-B5-A14	M5×0.8	10	50	77	ZPT1-●10-B5-A14
C-ZPT ○ H□● 20-B5-A14		20		81	ZPT1-●20-B5-A14
C-ZPT ○ H□● 30-B5-A14		30		91	ZPT1-●30-B5-A14
C-ZPT ○ H□● 50-B5-A14		50	75	136	ZPT1-●50-B5-A14
C-ZPT ○ H□● 10-B01-A14	Rc1/8	10	50	78.5	ZPT1-●10-B01-A14
C-ZPT ○ H□● 20-B01-A14		20		84	ZPT1-●20-B01-A14
C-ZPT ○H□● 30-B01-A14		30		94	ZPT1-●30-B01-A14
C-ZPT ○ H □● 50-B01-A14		50	75	139	ZPT1-●50-B01-A14
○Pad diameter symbol:40,50 □Pad material:NBR(N)S,Silicone rubber(S) ● Height compensator type:Rotative(J),Unable to rotate(K)

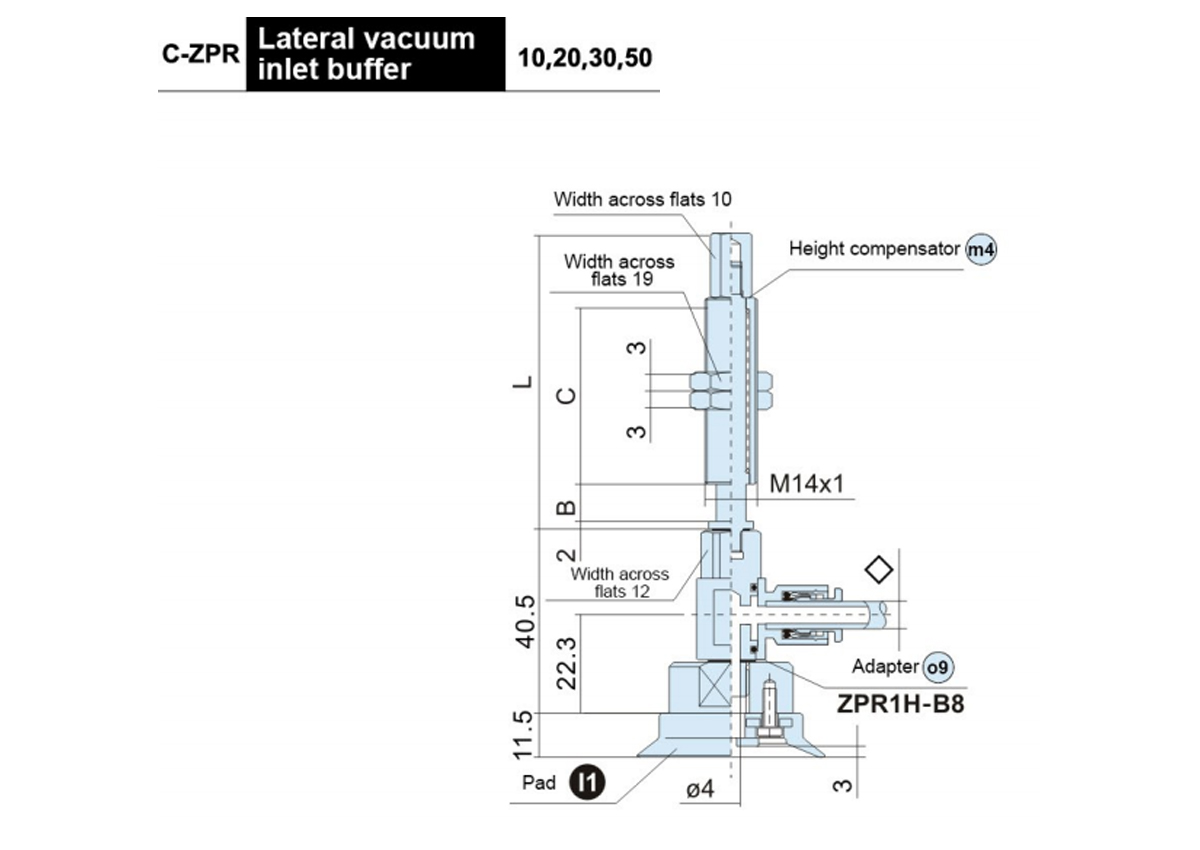

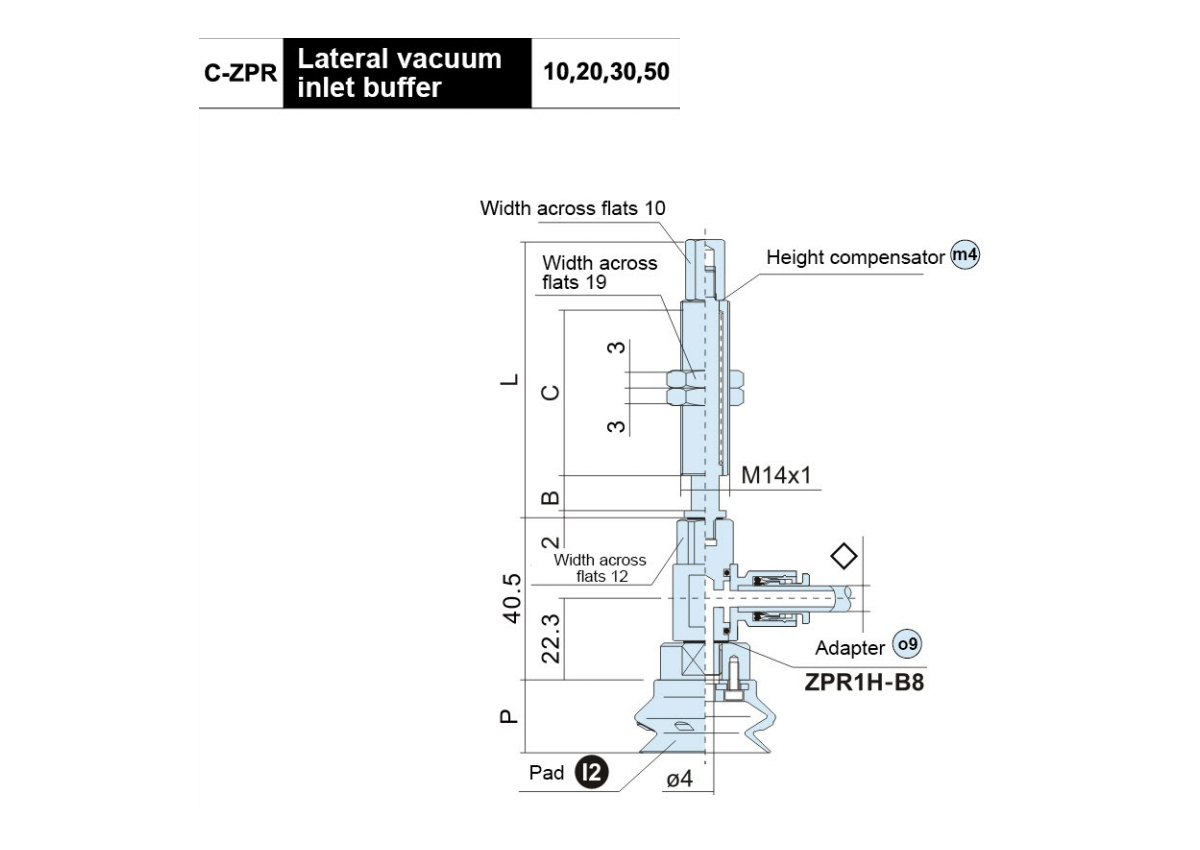

Model	B	C	L	m4 O9 Buffer Support Model
C-ZPR ○ H□● 10 -◇- A14	10	50	80	ZPR1 -●10-◇ -A14
C-ZPR ○ H□● 20 -◇ -A14	20		77	ZPR1-●20-◇-A14
C-ZPR ○ H□● 30- ◇ -A14	30		87	ZPR1-●30-◇-A14
C-ZPR ○ H □● 50 -◇ -A14	50	75	132	ZPR1-●50-◇-A14
○Pad diameter symbol:40,50 □ Pad material:NBR(N)S,Silicone rubber(S) ◇ Vacuum inlet connection:06,08 ●Height compensator type:Rotative(J),Unable to rotate(K)

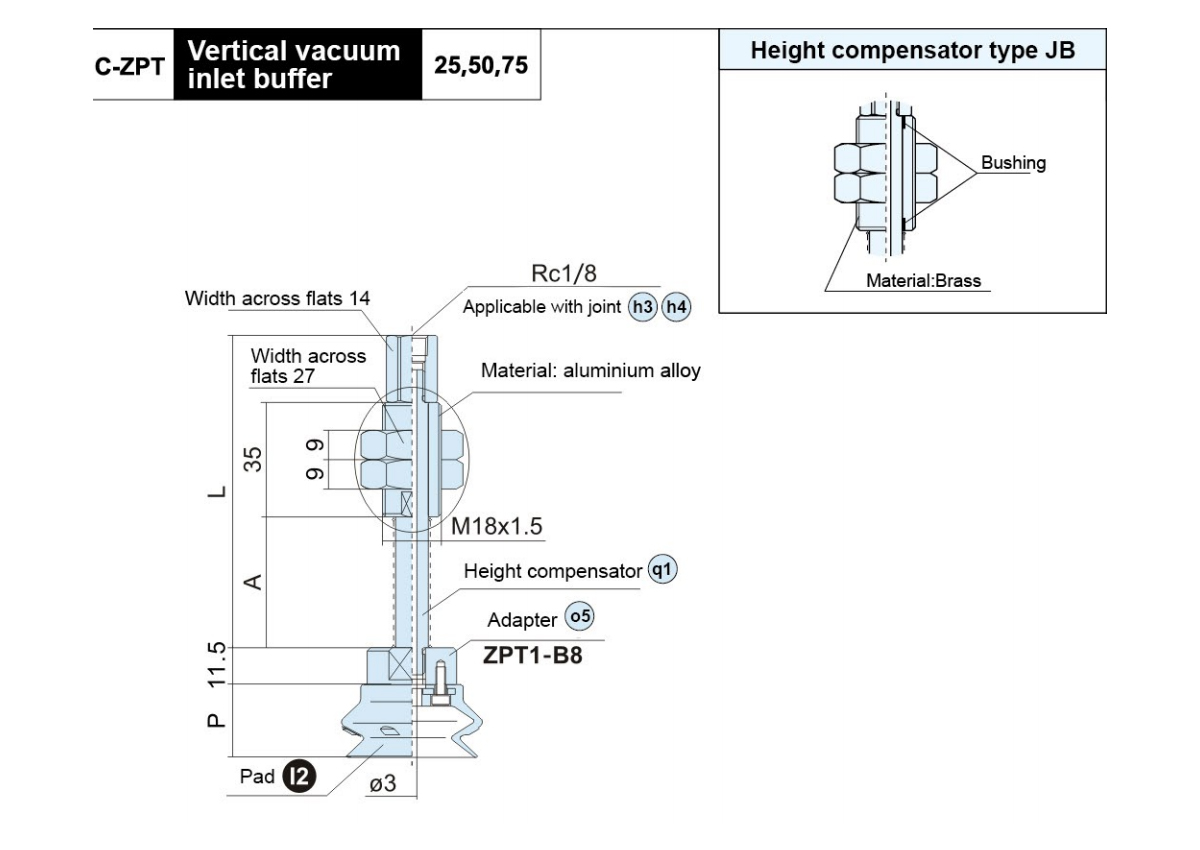

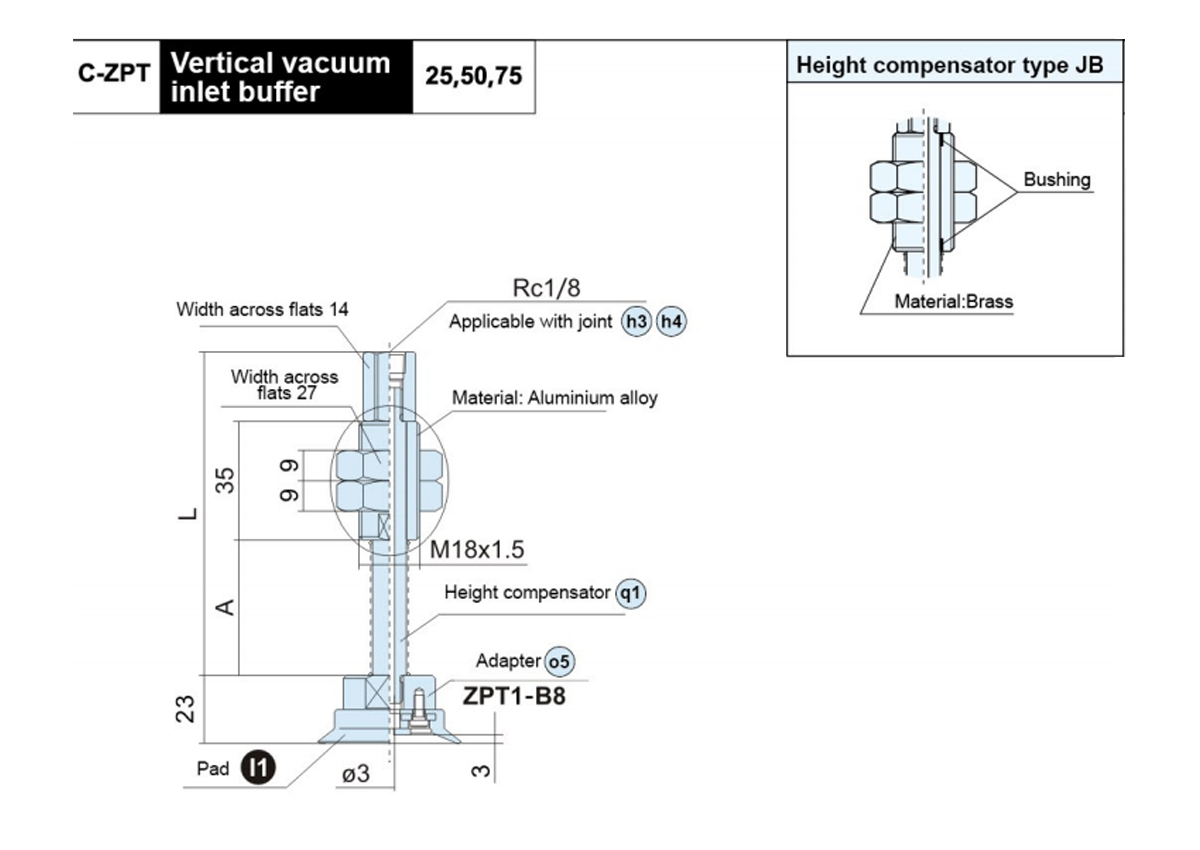

Model	A	L	q1 O5 Buffer Support Model
C-ZPT ○ H□● 25-B01-A18	40	95.5	ZPB1 ●25-B01-A18
C-ZPT ○ H□● 50-B01-A18	75	130.5	ZPB1 ●50-B01-A18
C-ZPT ○ H□● 75-B01-A18	111	166.5	ZPB1 ●75-B01-A18
○Pad diameter symbol:40,50 □ Pad material:NBR(N)S,Silicone rubber(S) Height compensator type:Aluminium alloy(J) Brass(JB)

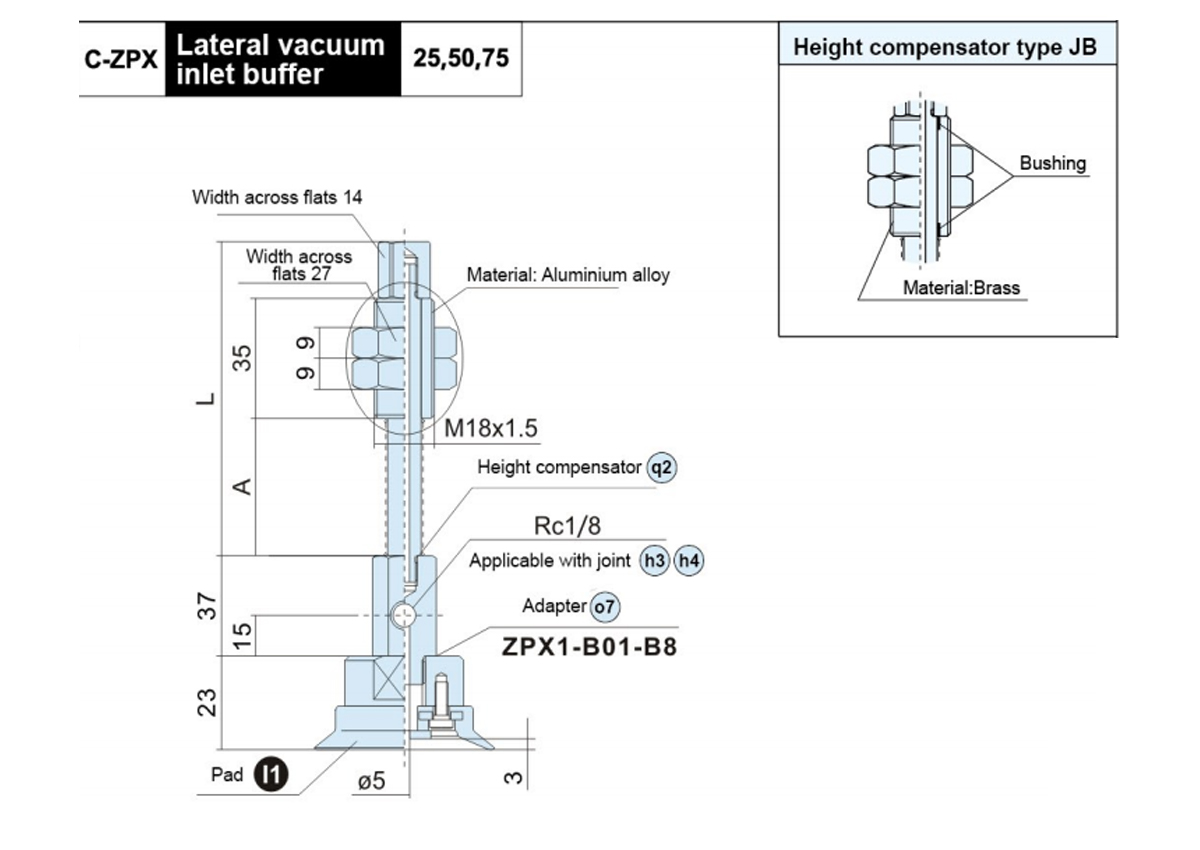

Model	A	L	q2 O7 Buffer Support Model
C-ZPX ○ H□● 25-B01-A18	40	91	ZPX1 ●25-B01-A18
C-ZPX ○ H□● 50-B01-A18	75	126	ZPX1 ●50-B01-A18
C-ZPX ○ H □● 75-B01-A18	111	162	ZPX1 ●75-B01-A18
○Pad diameter symbol:40,50 □ Pad material:NBR(N)S,Silicone rubber(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

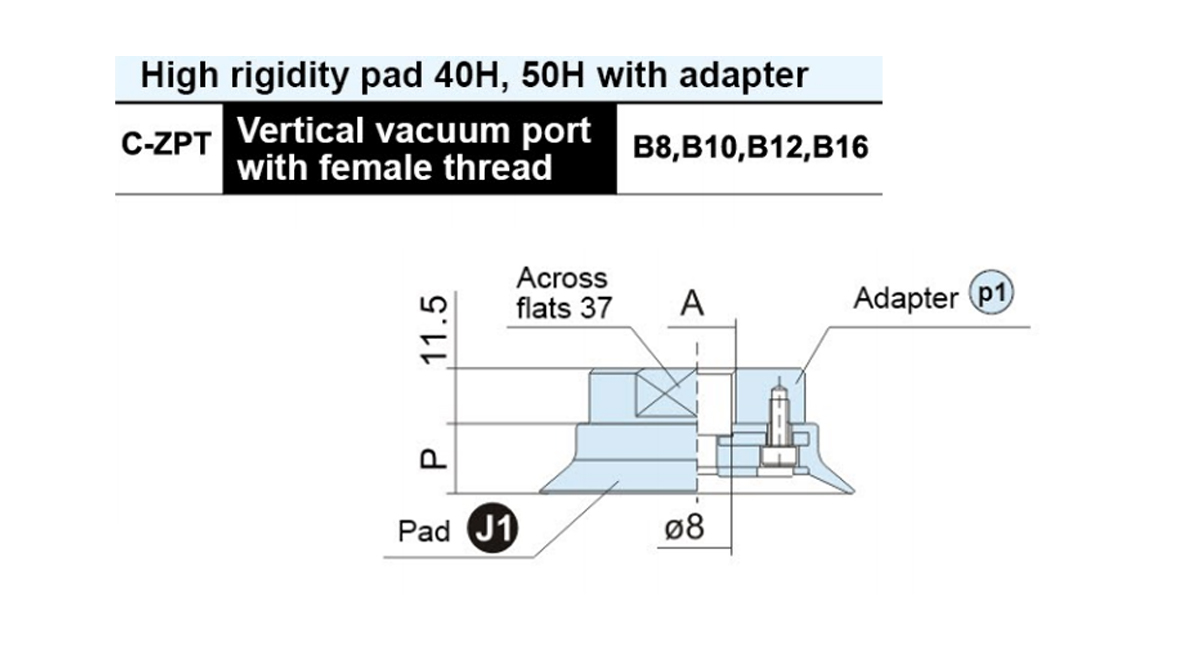

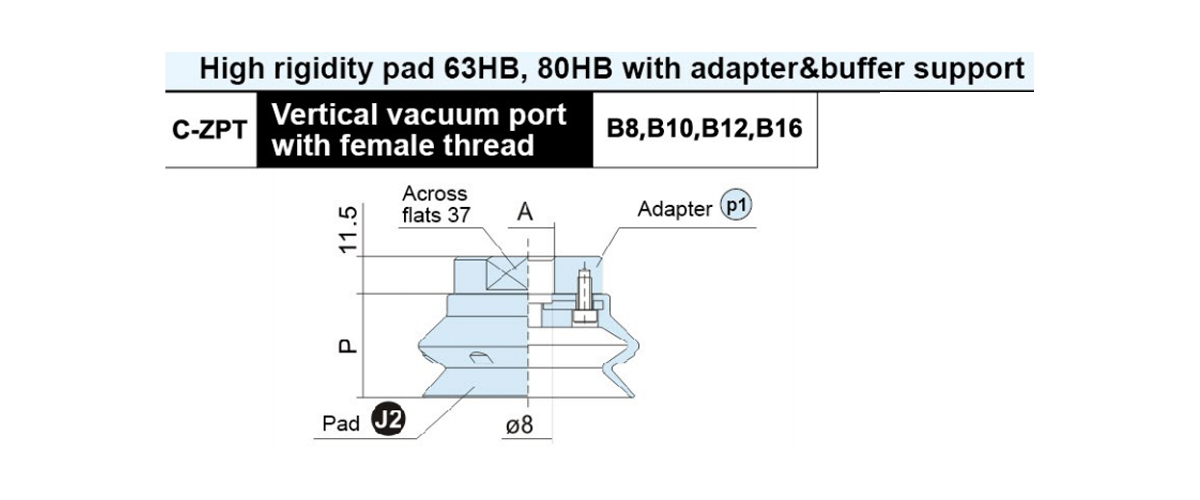

Model	A	Pad Diameter		P	Adaptor Model
		63	80
C-ZPT ○ H□-B8	M8×1.25	14.5	16.5		ZPT2-B8
C-ZPT ○ H□-B10	M10×1.5				ZPT2-B10
C-ZPT○H□-B12	M12×1.75				ZPT2-B12
C-ZPT ○ H□-B16	M16×1.5				ZPT2-B16
○ Pad diameter symbol:63,80 □Pad material:NBR(N),Silicone rubber(S)

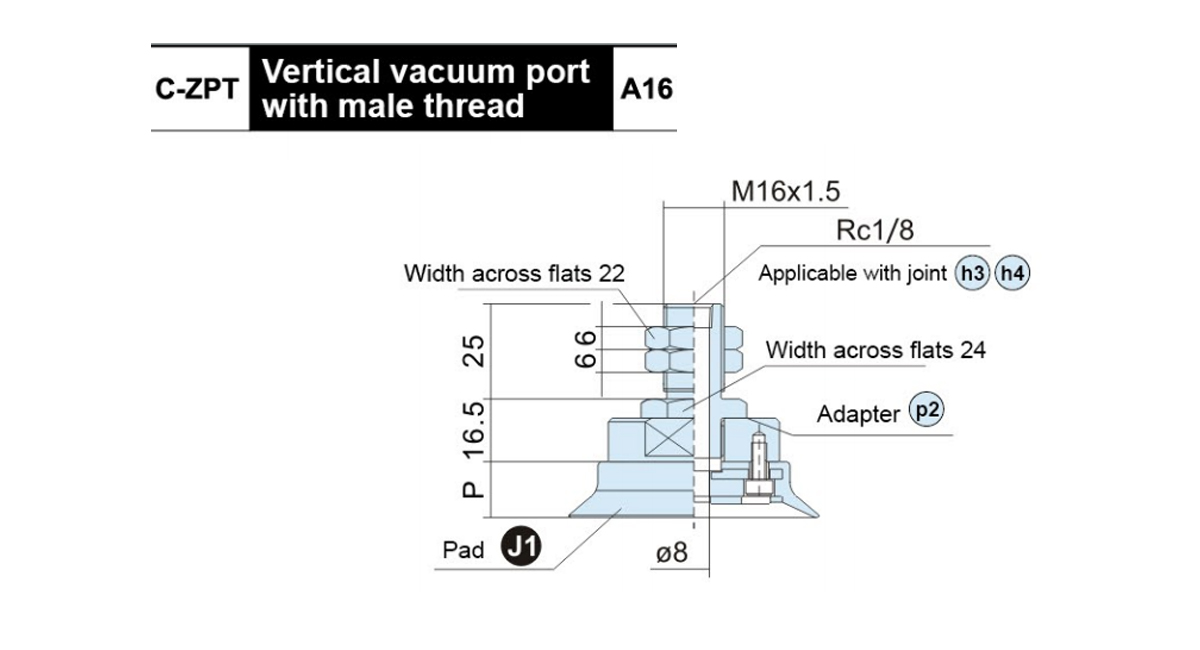

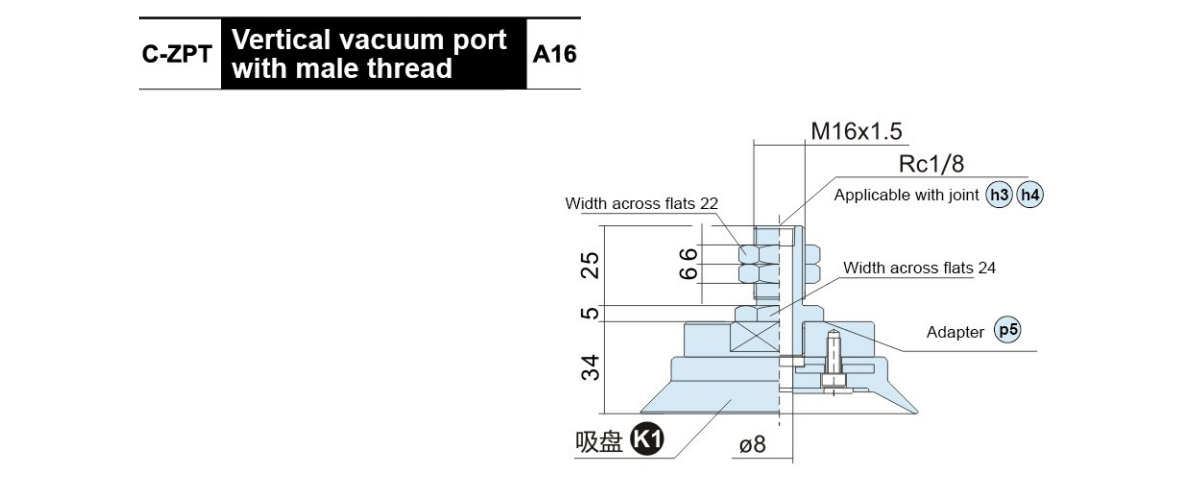

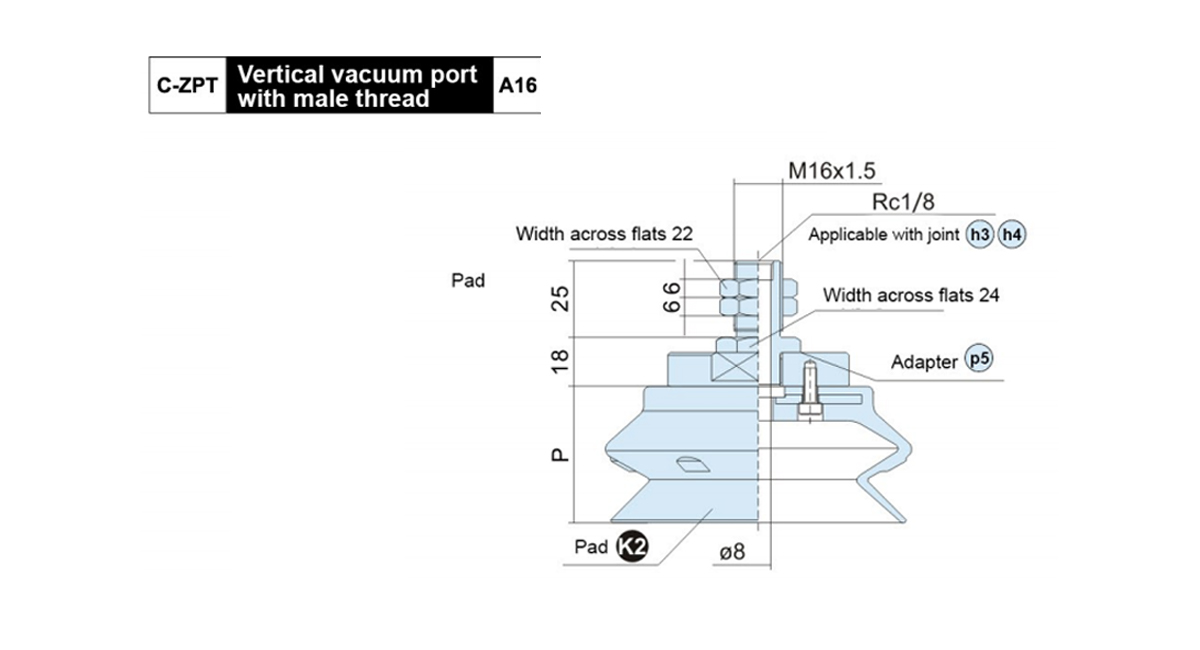

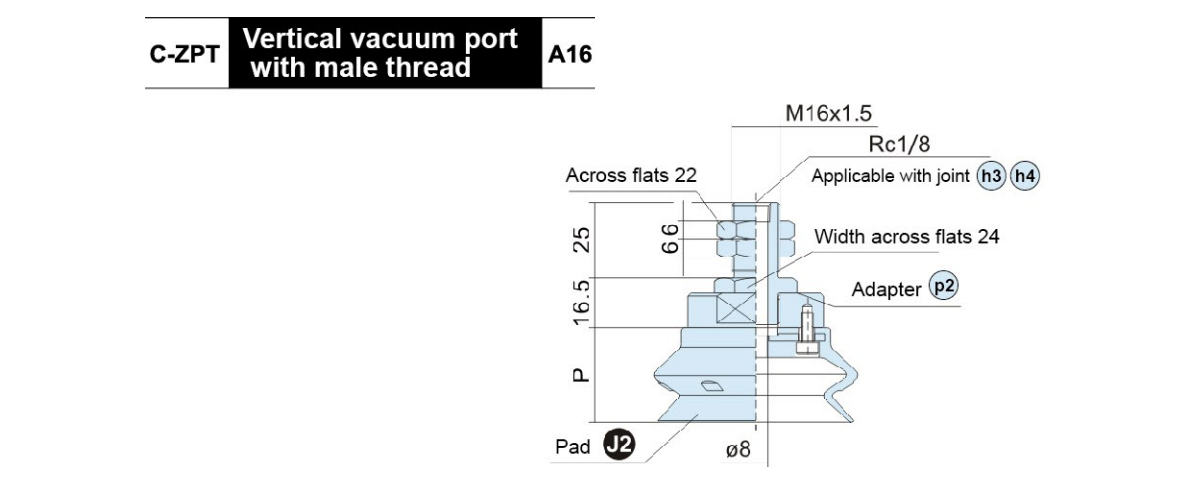

Model	P	Adaptor Model
C-ZPT63H □- A16	14.5	ZPT2-A16
C-ZPT80H □-A16	16.5	ZPT2-A16
□ Pad material:NBR(N),Silicone rubber(S)

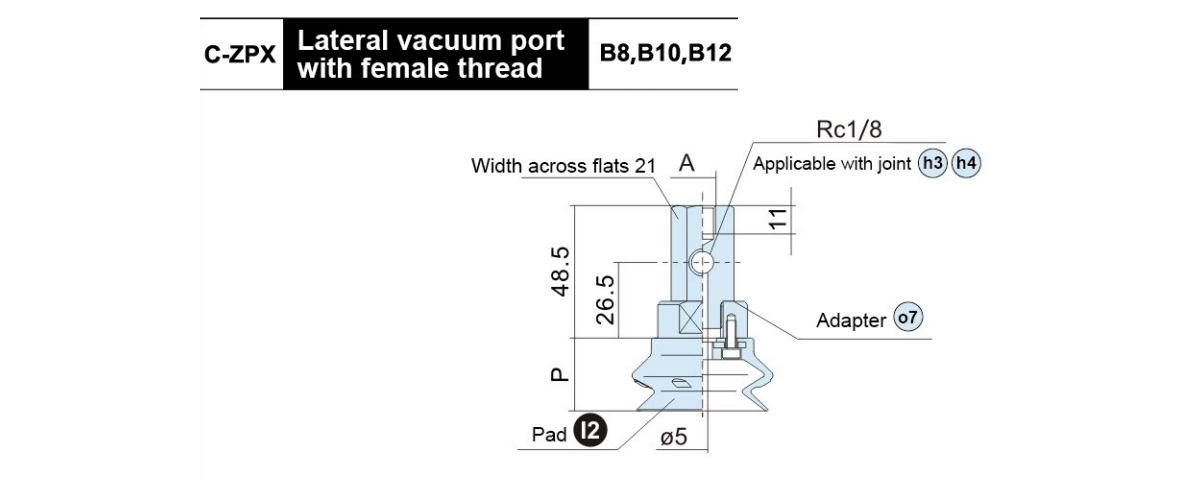

Model	A	Pad Diameter P
		63	80
C-ZPX ○ H□- B01-B8	M8×1.25	14.5	16.5
C-ZPX ○ H□- B01-B10	M10×1.5
C-ZPX ○ H □- B01-B12	M12×1.75
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S)

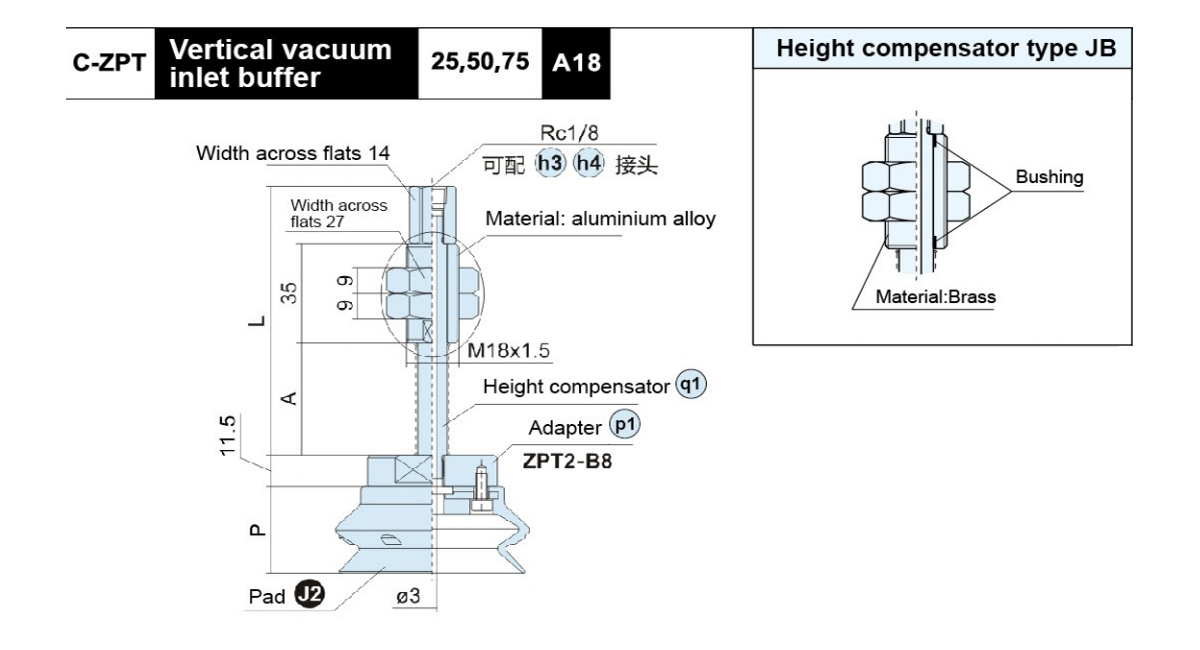

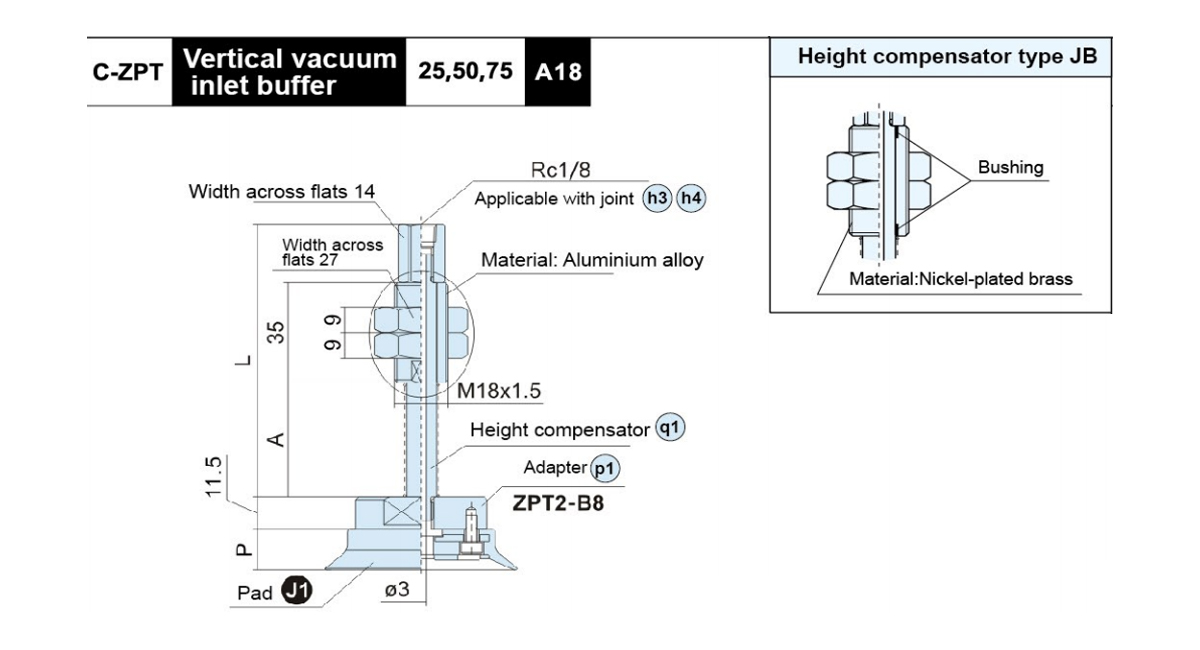

Model	A	L	Pad Diameter		P	q1 P1 Buffer Support Model
			63	80
C-ZPT ○ H□● 25-B01-A18	40	95.5	14.5	16.5		ZPB2 ● 25-B01-A18
C-ZPT ○ H□● 50-B01-A18	75	130.5				ZPB2 ●50-B01-A18
C-ZPT ○ H□● 75-B01-A18	111	166.5				ZPB2 ● 75-B01-A18
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

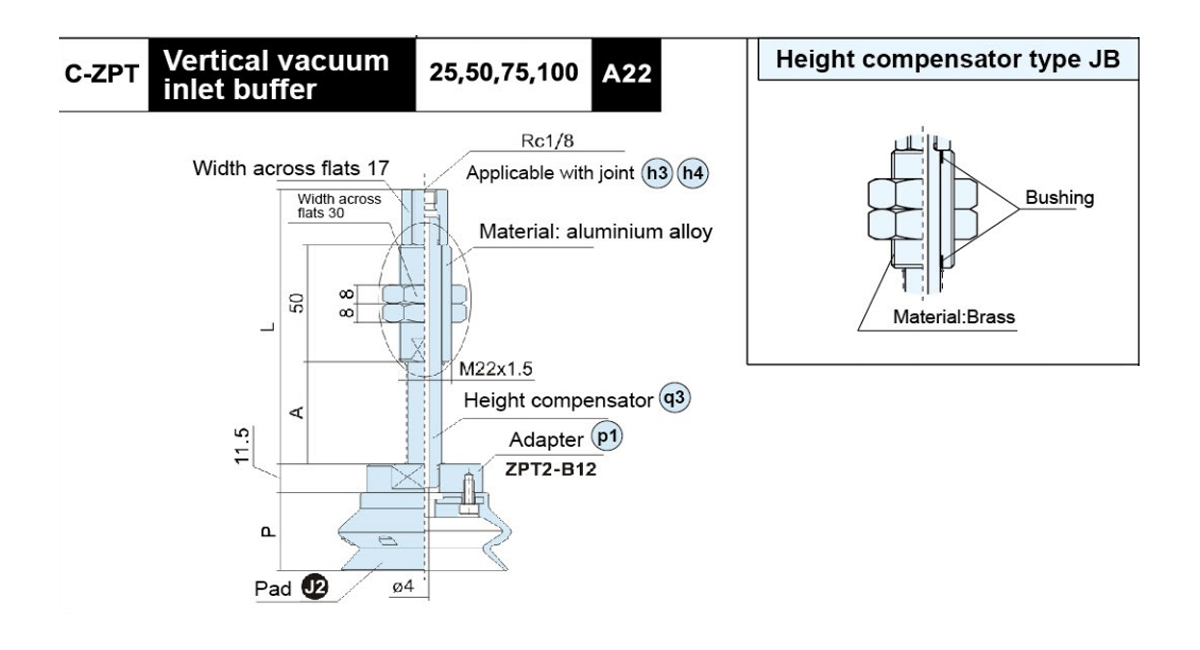

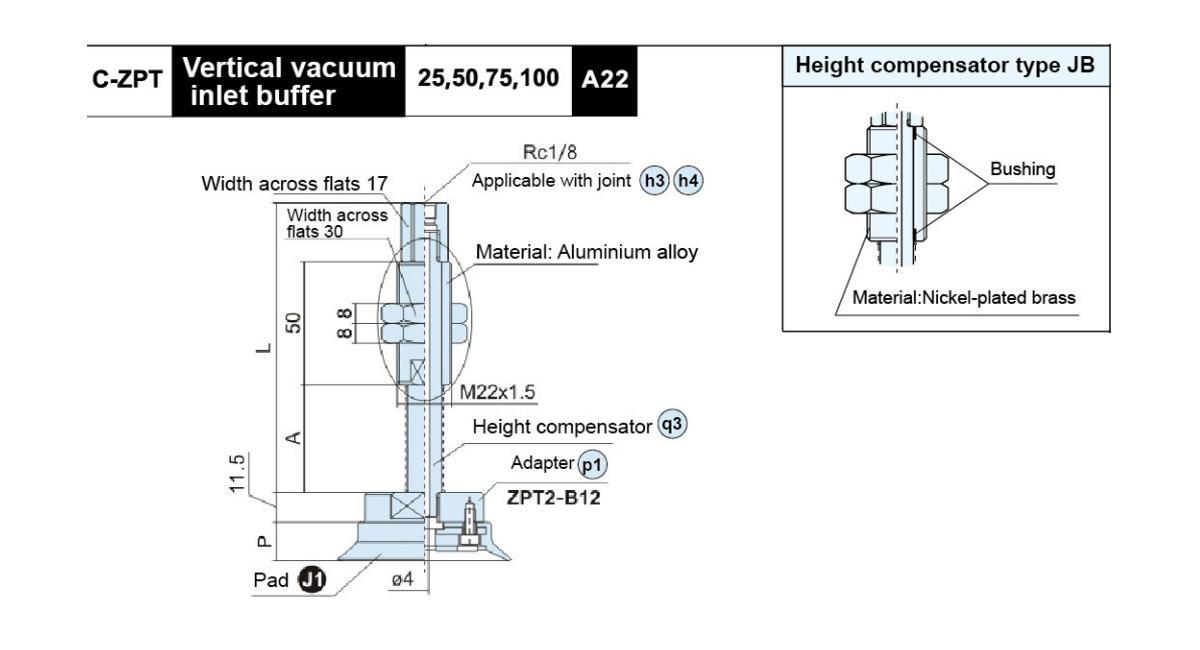

Model	A	L	Pad Diameter		P	q3 p1 Buffer Support Model
			63	80
C-ZPT ○ H□● 25-B01-A22	44	118	14.5	16.5		ZPB2 ●25-B01-A22
C-ZPT ○ H□● 50-B01-A22	80	154				ZPB2●50-B01-A22
C-ZPT ○ H□● 75-B01-A22	120	194				ZPB2●75-B01-A22
C-ZPT ○ H□● 100-B01-A22	155	229				ZPB2 ●100-B01-A22
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

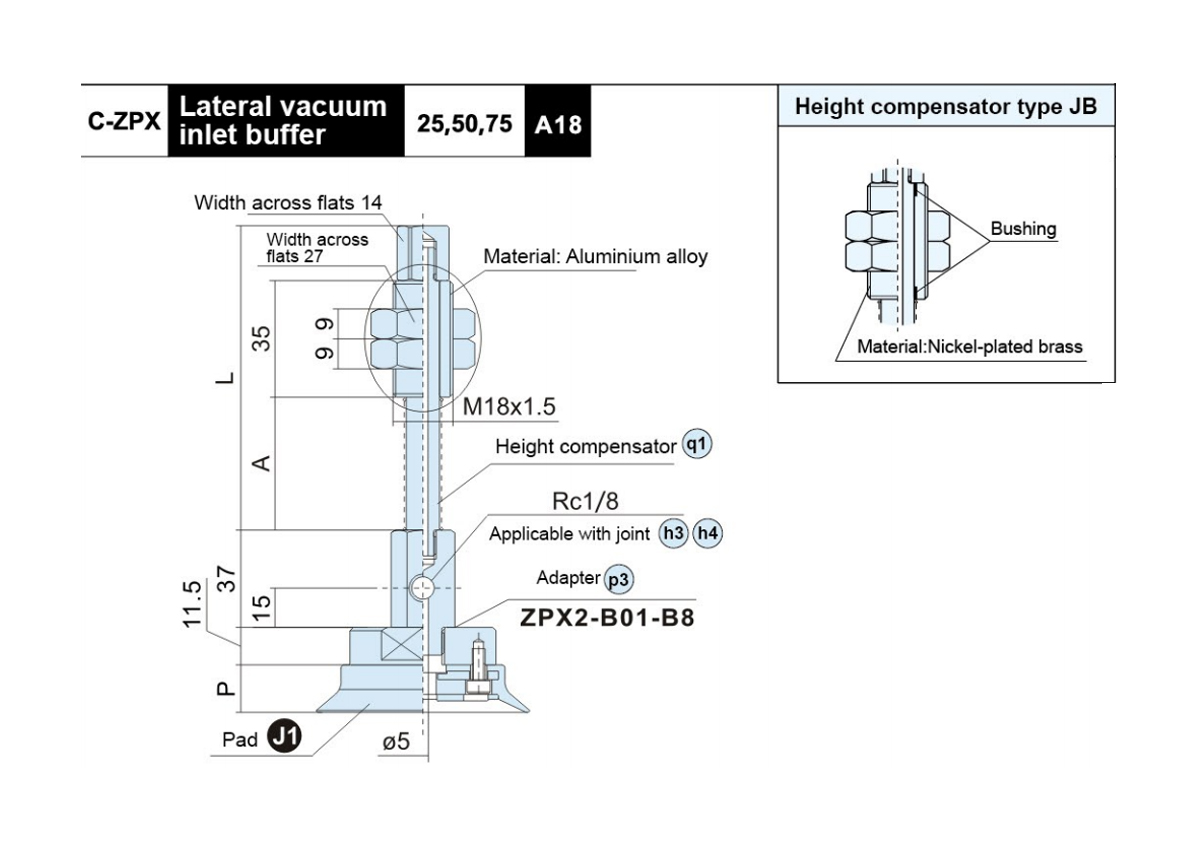

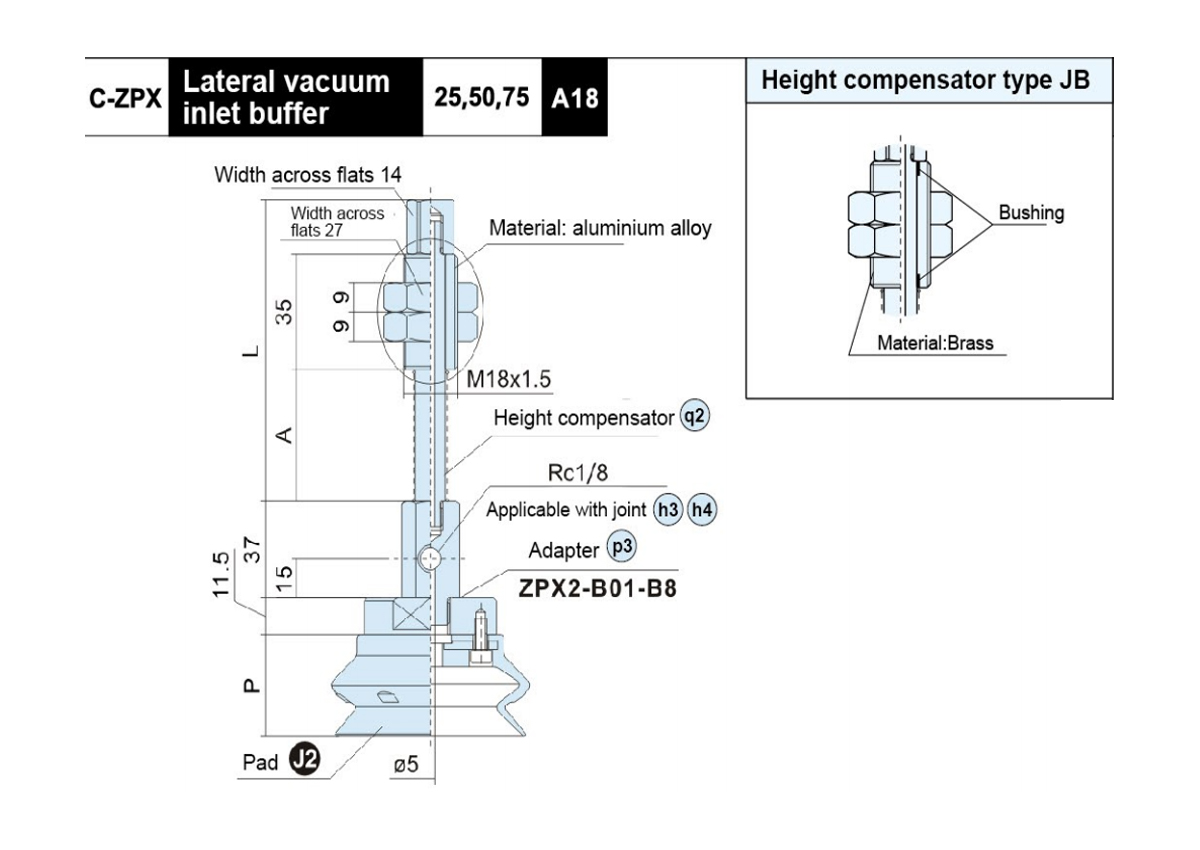

Model	A	L	Pad Diameter		P	q2 p3 Buffer Support Model
			63	80
C-ZPX ○ H □● 25-B01-A18	40	95.5	14.5	16.5		ZPX2 ●25-B01-A18
C-ZPX ○ H □● 50-B01-A18	75	130.5				ZPX2 ●50-B01-A18
C-ZPX ○ H □● 75-B01-A18	111	166.5				ZPX2 ●75-B01-A18
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ●Height compensator type:Aluminium alloy(J),Brass(JB)

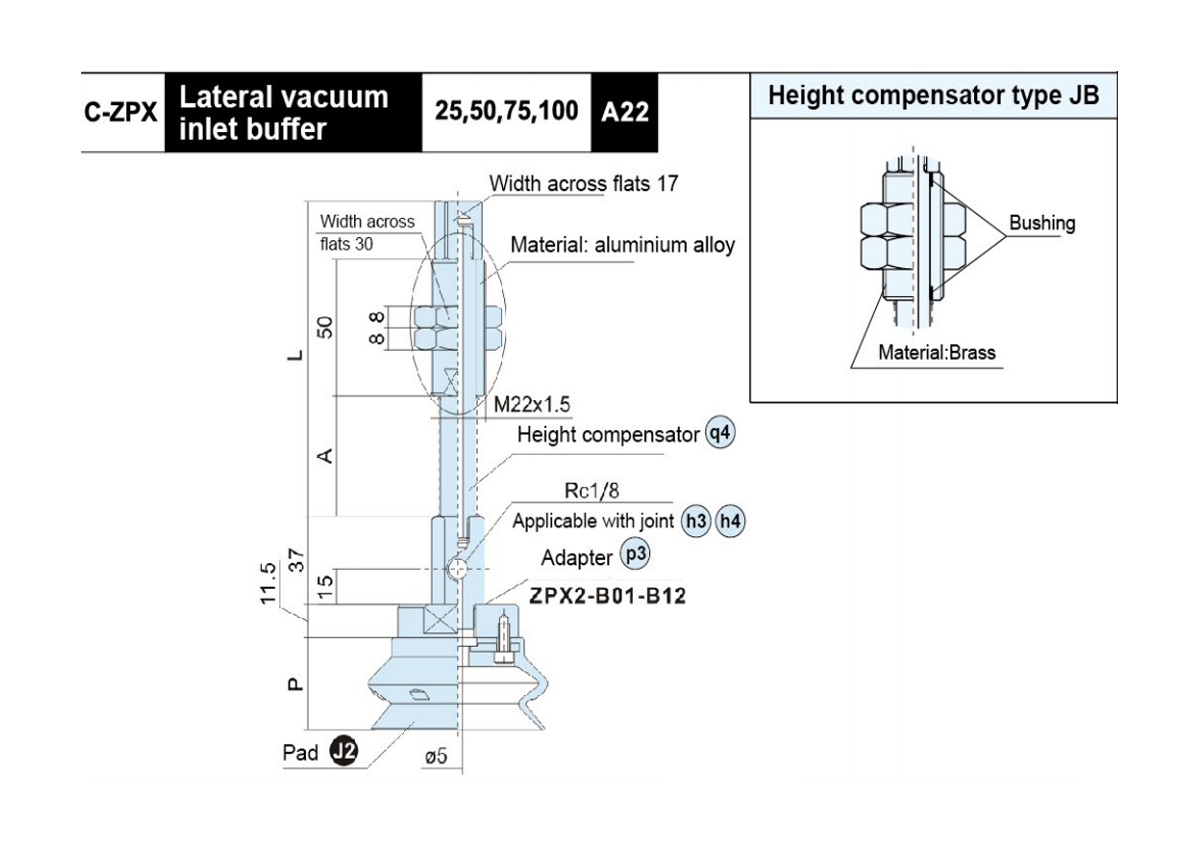

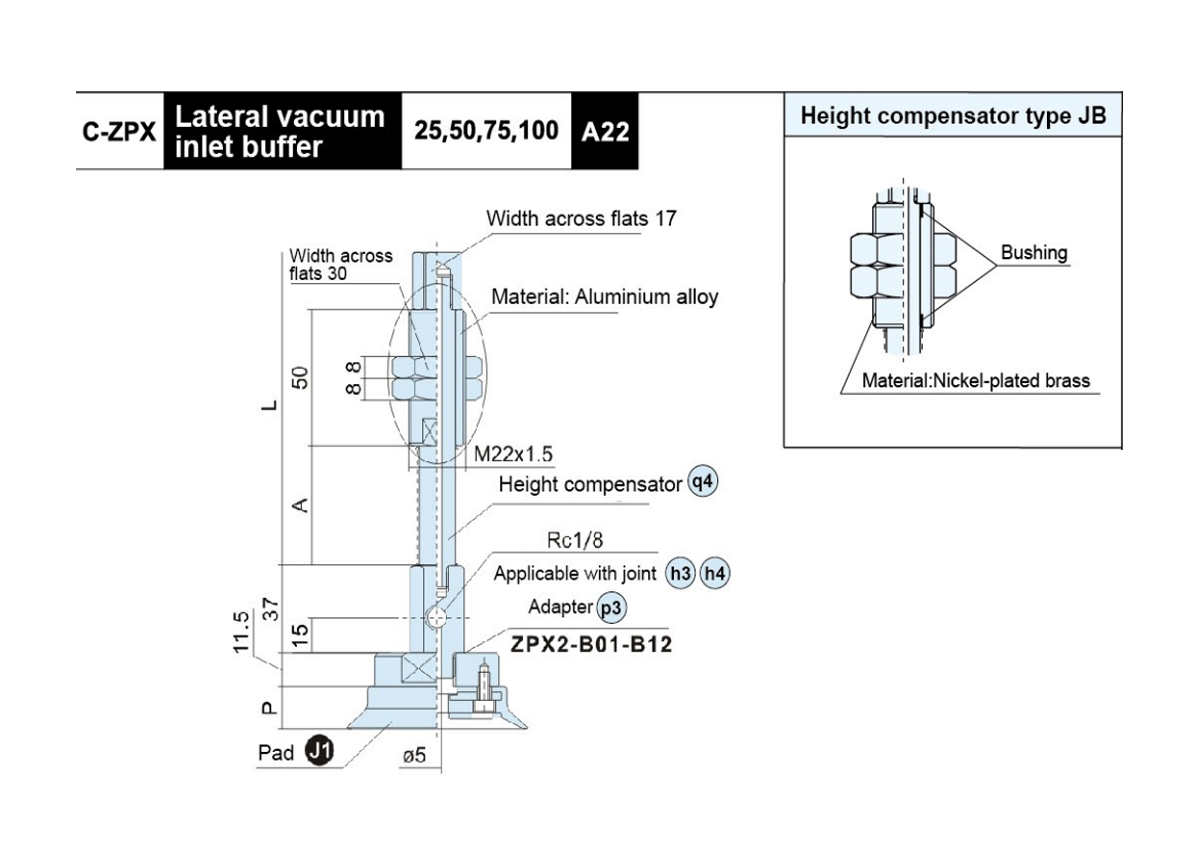

Model	A	L	Pad Diameter P		q4 p3 Buffer Support Model
			63	80
C-ZPX ○ H □● 25-B01-A22	44	118	14.5	16.5	ZPX2●25-B01-A22
C-ZPX ○ H □● 50-B01-A22	80	154			ZPX2●50-B01-A22
C-ZPX ○ H □● 75-B01-A22	120	194			ZPX2●75-B01-A22
C-ZPX ○ H □● 100-B01-A22	155	229			ZPX2●100-B01-A22
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

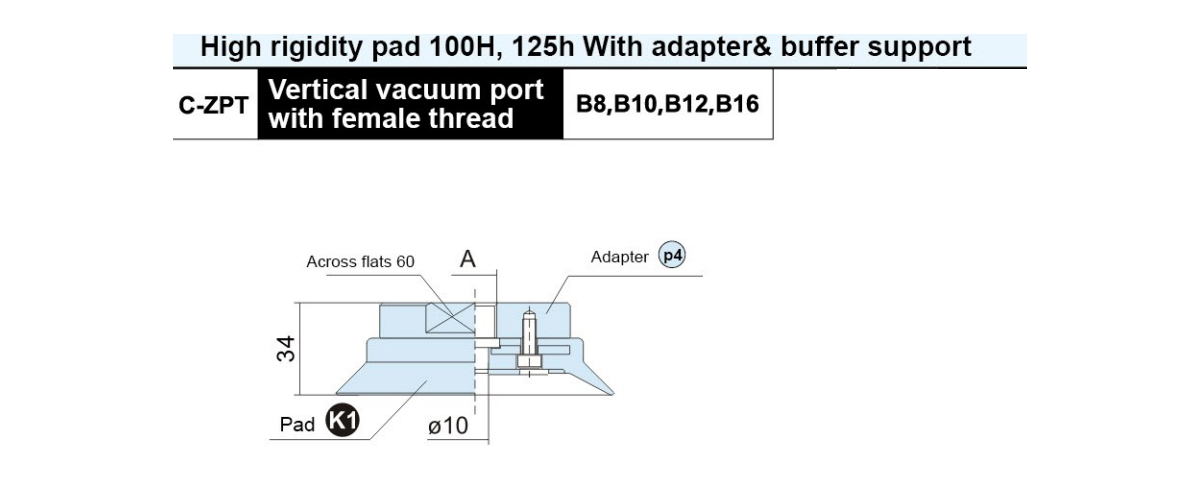

Model	A	Adaptor Model
C-ZPT ○ H□- B12	M12×1.75	ZPT3-B12
C-ZPT ○ H □- B16	M16×1.5	ZPT3-B16
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

Model	Adaptor Model
C-ZPT100H □-A16	ZPT3-A16
C-ZPT125H □-A16
□ Pad material:NBR(N),Silicone rubber(S)

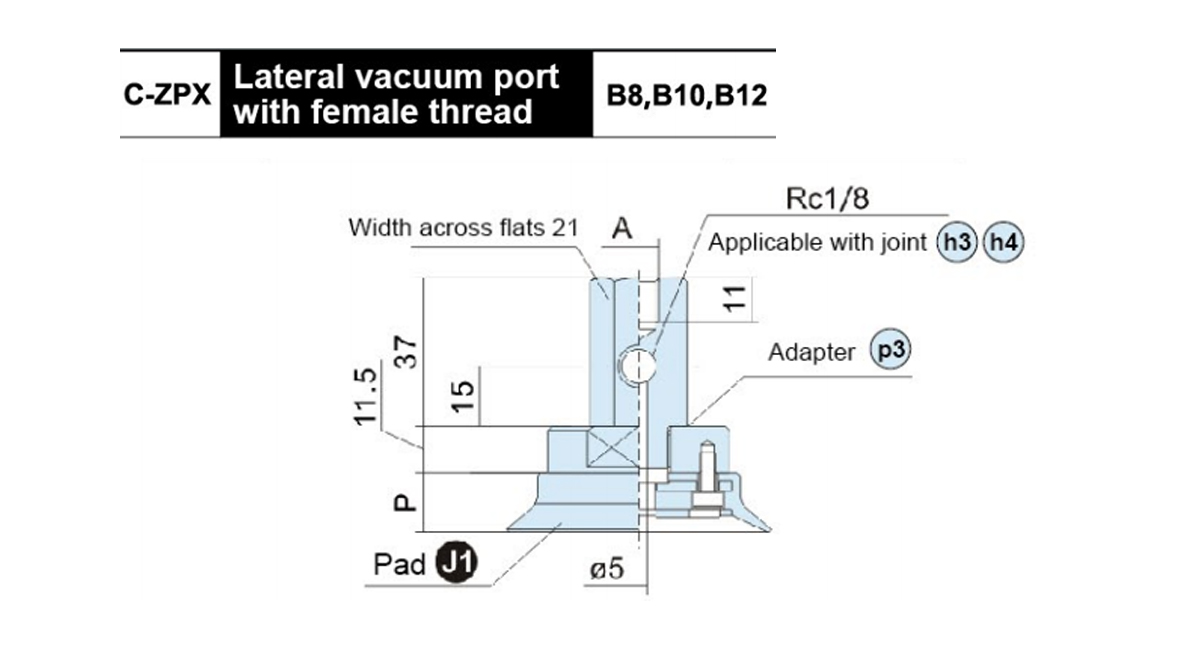

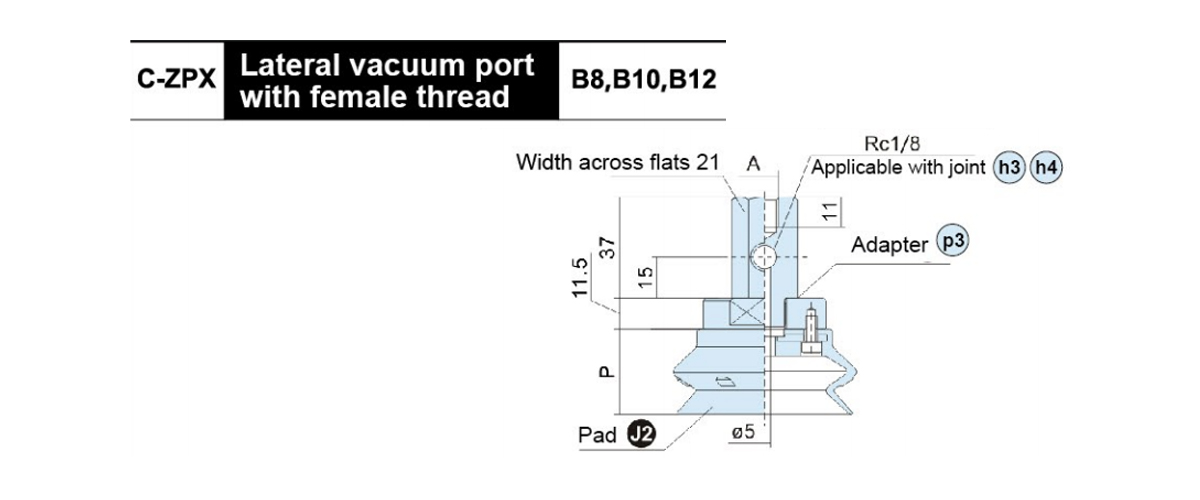

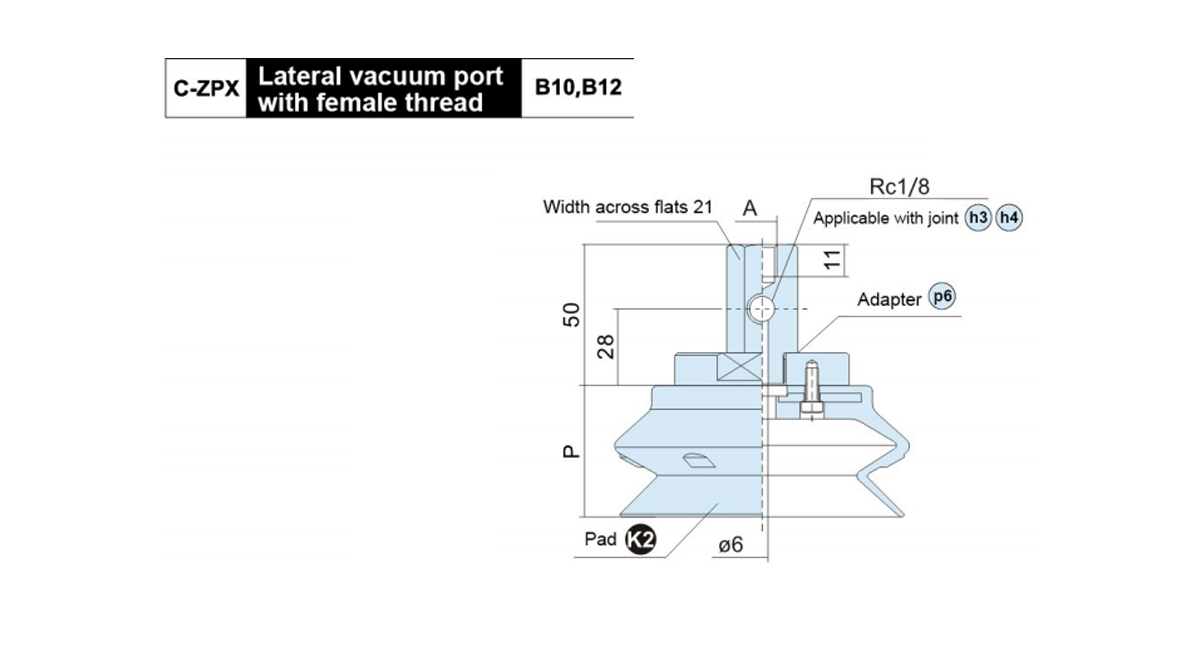

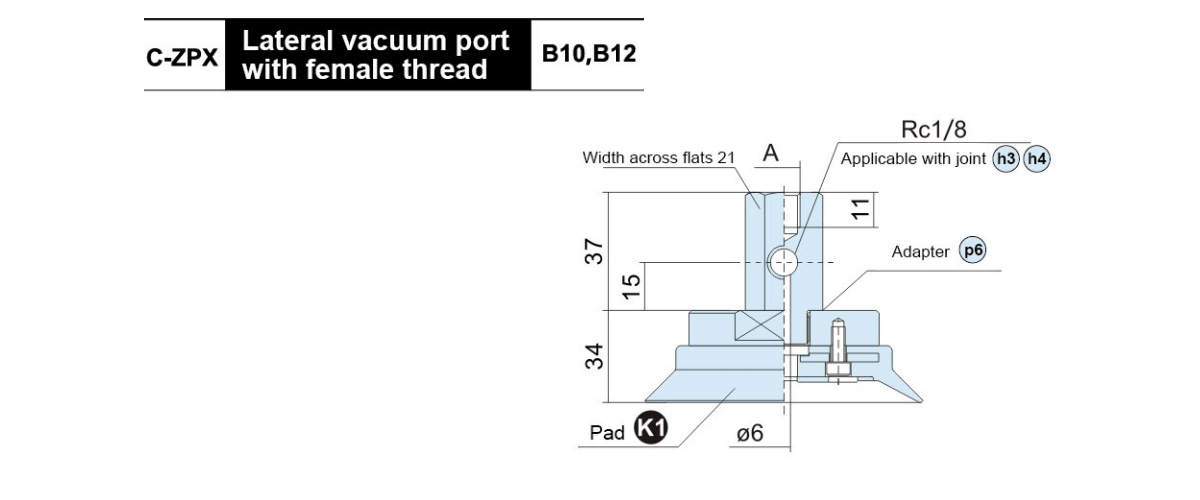

Model	A	Adaptor Model
C-ZPX ○ H□- B01-B10	M10×1.5	ZPX3-B01-B10
C-ZPX ○ H□- B01-B12	M12×1.75	ZPX3-B01-B12
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

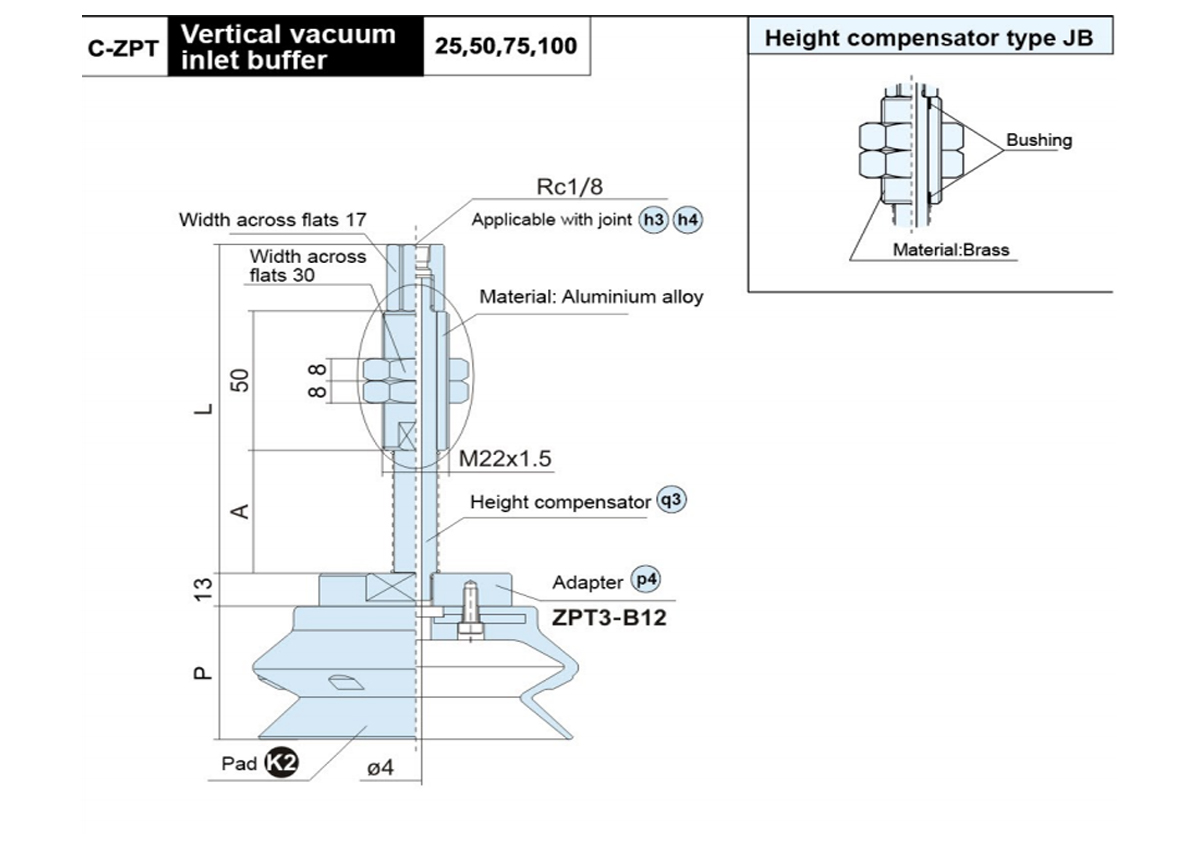

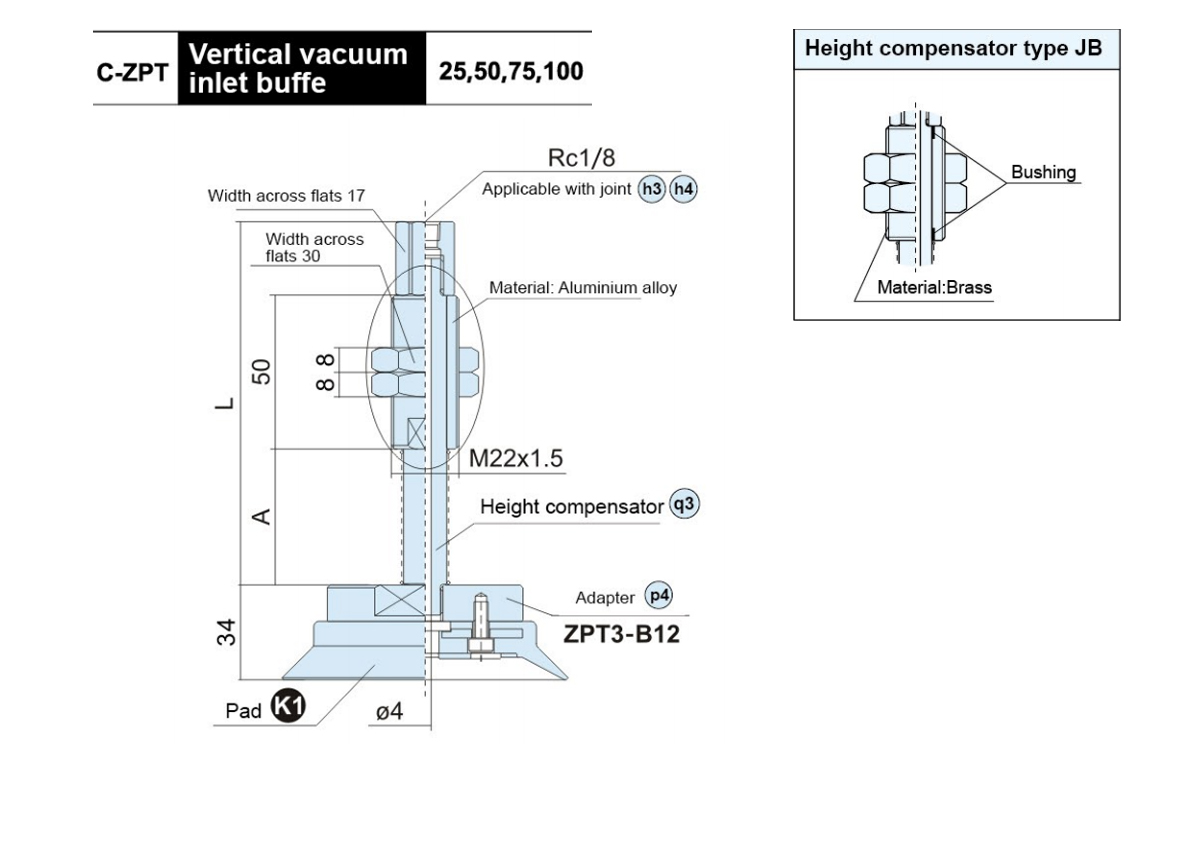

Model	A	L	q3 p4 Adaptor Model
C-ZPT ○ H □● 25-B01-A22	44	118	ZPB3 ●25-B01-A22
C-ZPT ○ H □● 50-B01-A22	80	154	ZPB3 ●50-B01-A22
C-ZPT ○ H □● 75-B01-A22	120	194	ZPB3●75-B01-A22
C-ZPT ○ H □● 100-B01-A22	155	229	ZPB3●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

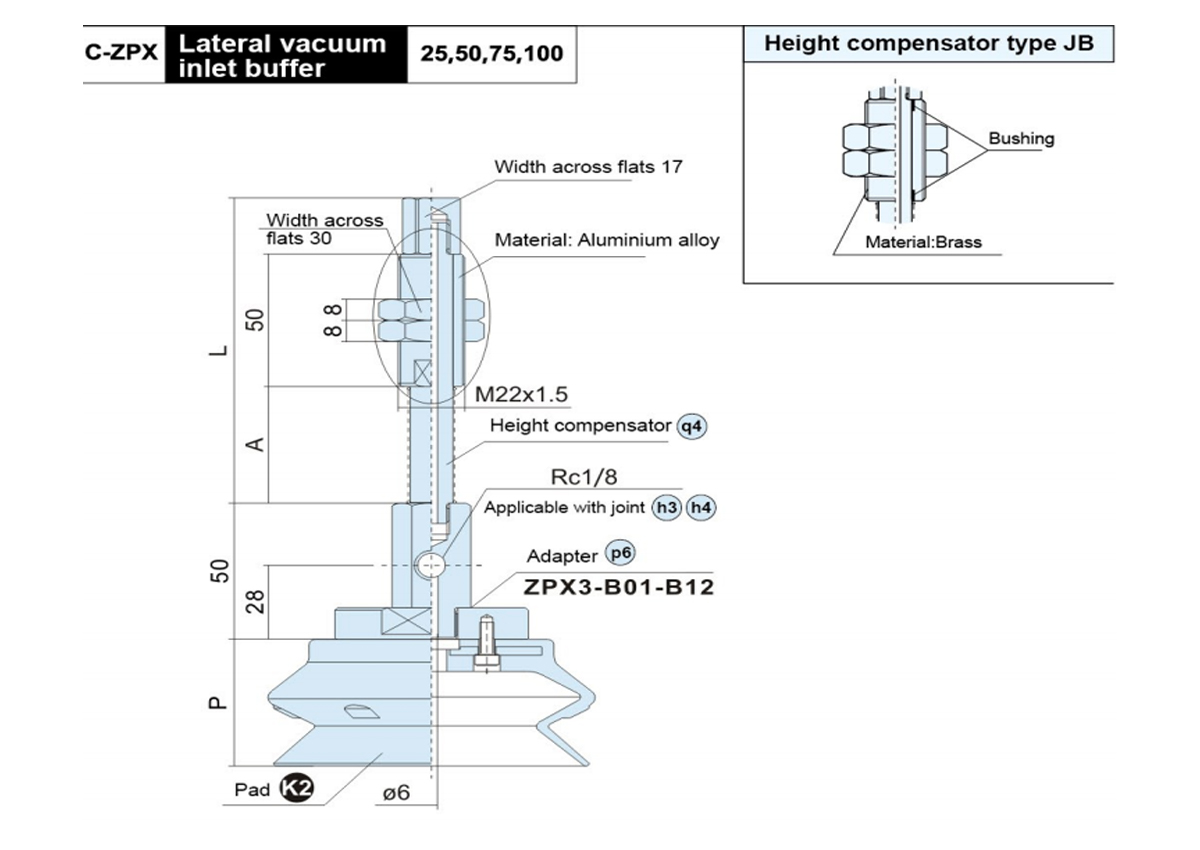

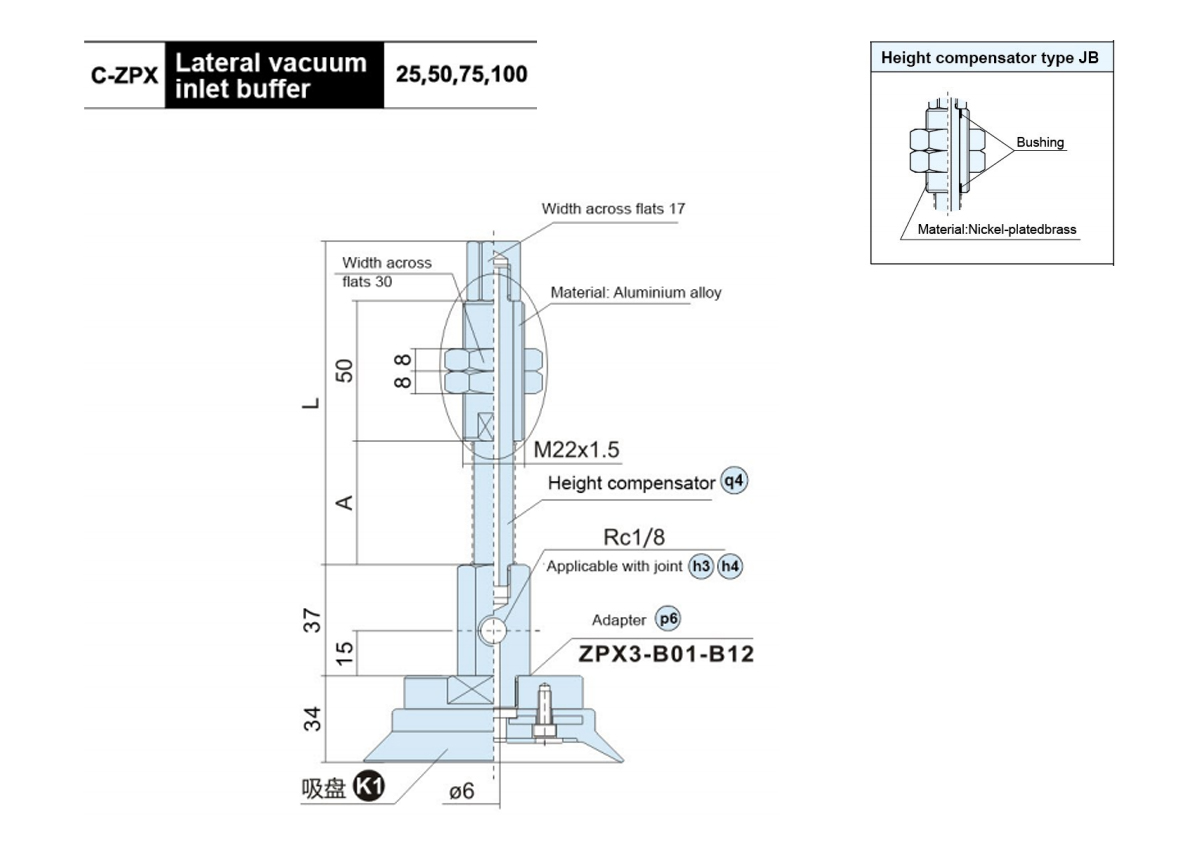

Model	A	L	q4 p6 Adaptor Model
C-ZPX ○ H□● 25-B01-A22	44	118	ZPX3 ●25-B01-A22
C-ZPX ○ H□● 50-B01-A22	80	154	ZPX3 ●50-B01-A22
C-ZPX ○H□● 75-B01-A22	120	194	ZPX3 ●75-B01-A22
C-ZPX ○H□● 100-B01-A22	155	229	ZPX3 ●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J) Brass(JB)

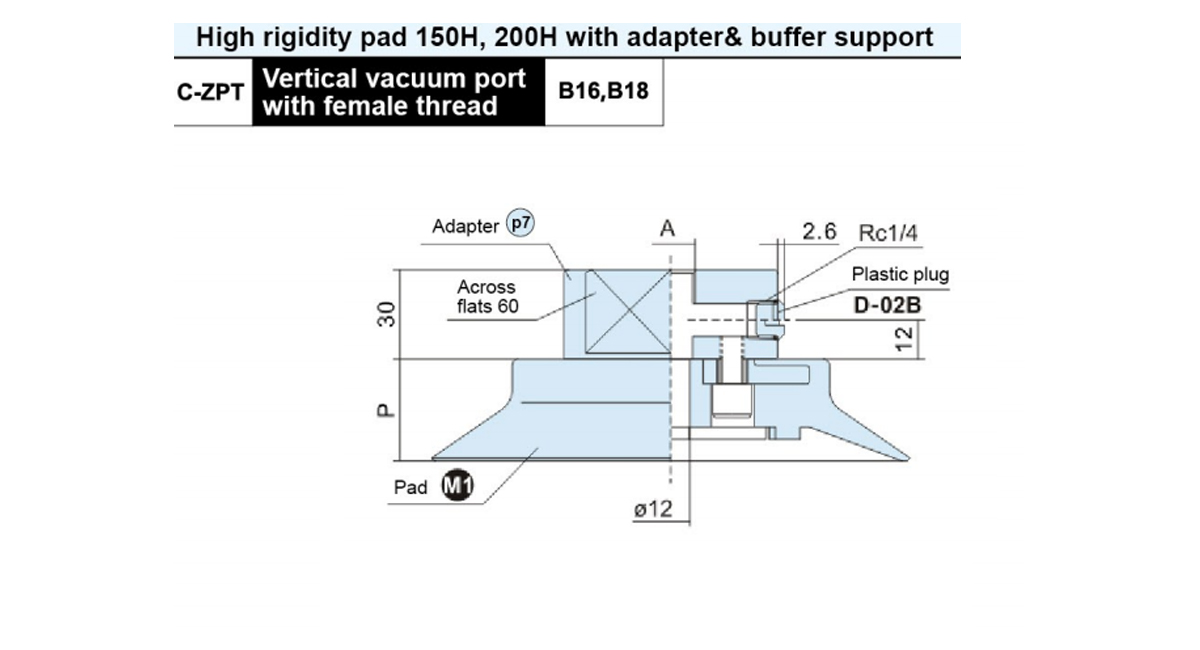

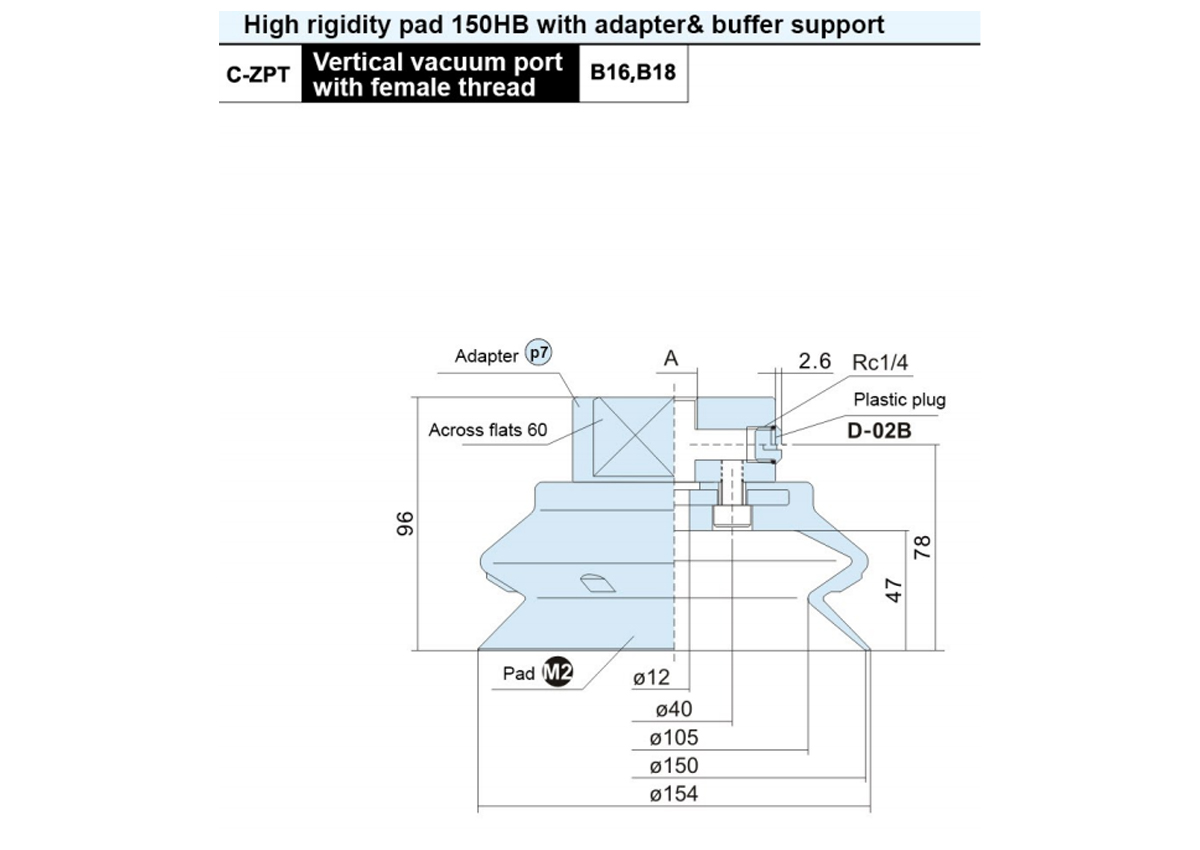

Model	A	Pad Diameter P		Adaptor Model
		150	200
C-ZPT ○ H□-B16	M16×1.5	33	36	ZPT4-B16
C-ZPT ○ H□-B18	M18×1.5			ZPT4-B18
○ Pad diameter symbol:150,200 □ Pad material:NBR(N),Silicone rubber(S)

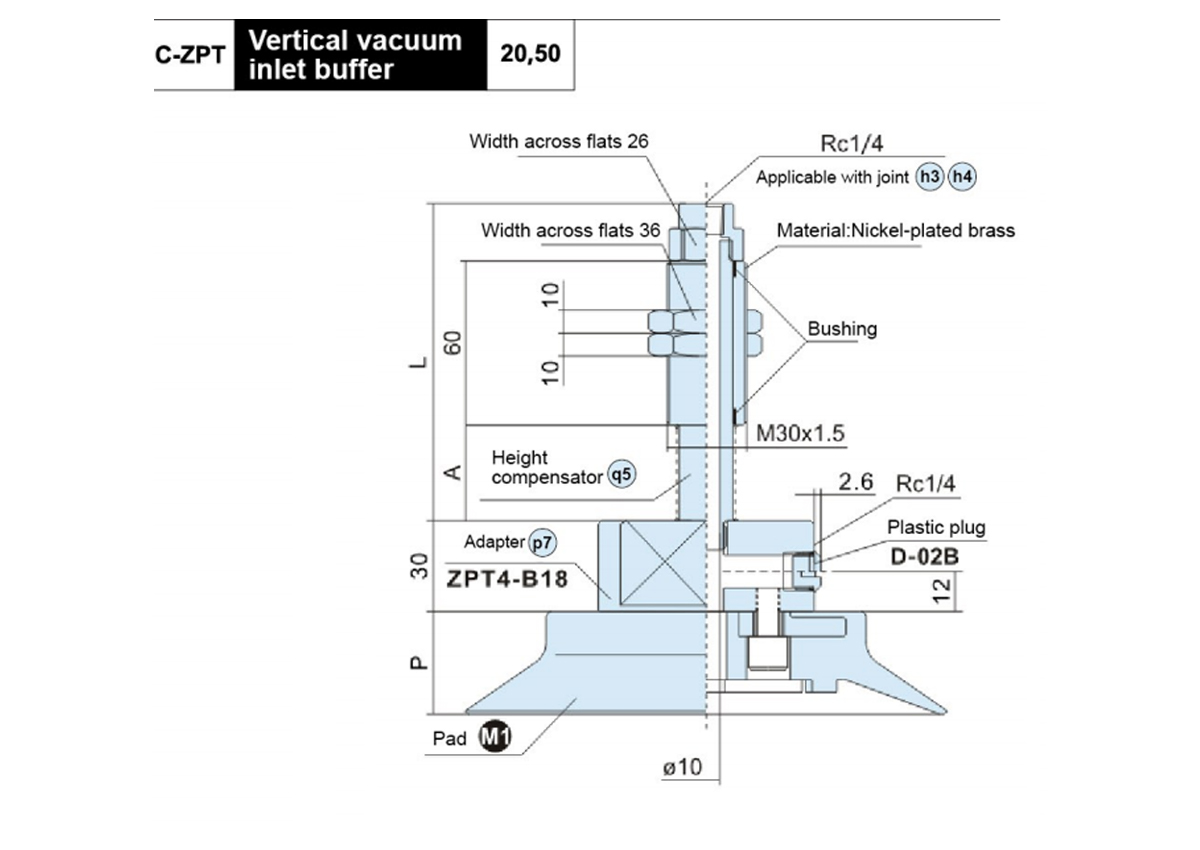

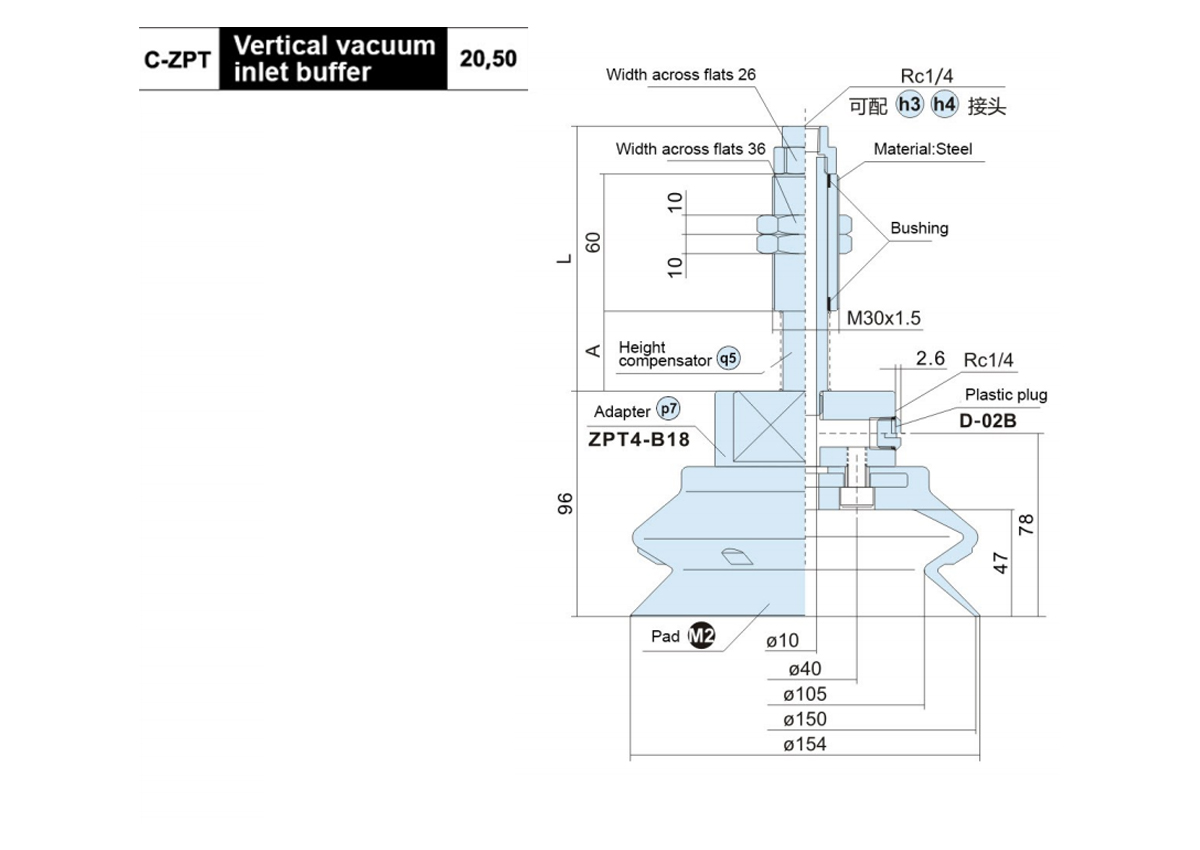

Model	A	L	Pad Diameter P		q5 p7 Buffer Support Model
			150	200
C-ZPT ○ H □ JF20-B02-A30	35	118	33	36	ZPB4JF20-B02-A30
C-ZPT ○ H □ JF50-B02-A30	75	154			ZPB4JF50-B02-A30
○ Pad diameter symbol:150,200 □ Pad material:NBR(N),Silicone rubber(S)

Model	Adaptor Model

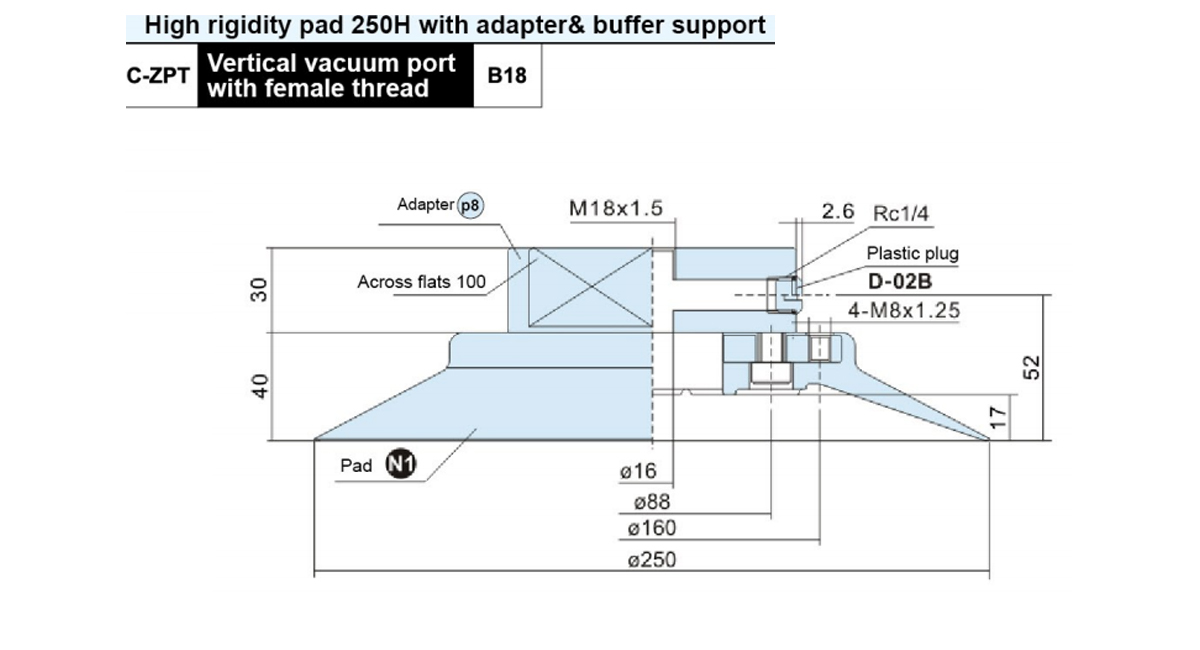

C-ZPT250H□-B18	ZPT5-B18
□ Pad material:NBR(N),Silicone rubber(S)

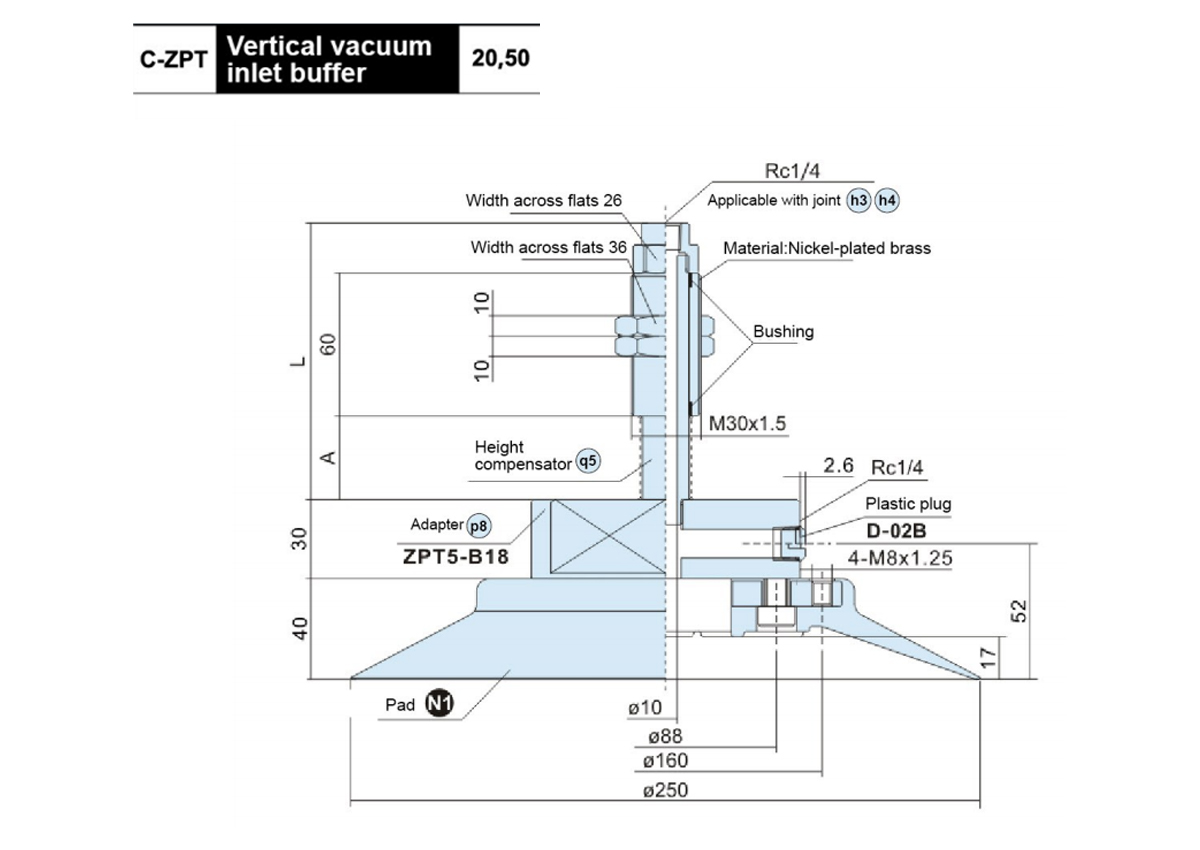

Model	A	L	q5 p8 Buffer Support Model
C-ZPT250H□JF20-B02-A30	35	118	ZPB5JF20-B02-A30
C-ZPT250H□JF50-B02-A30	75	154	ZPB5JF50-B02-A30
□ Pad material:NBR(N),Silicone rubber(S)

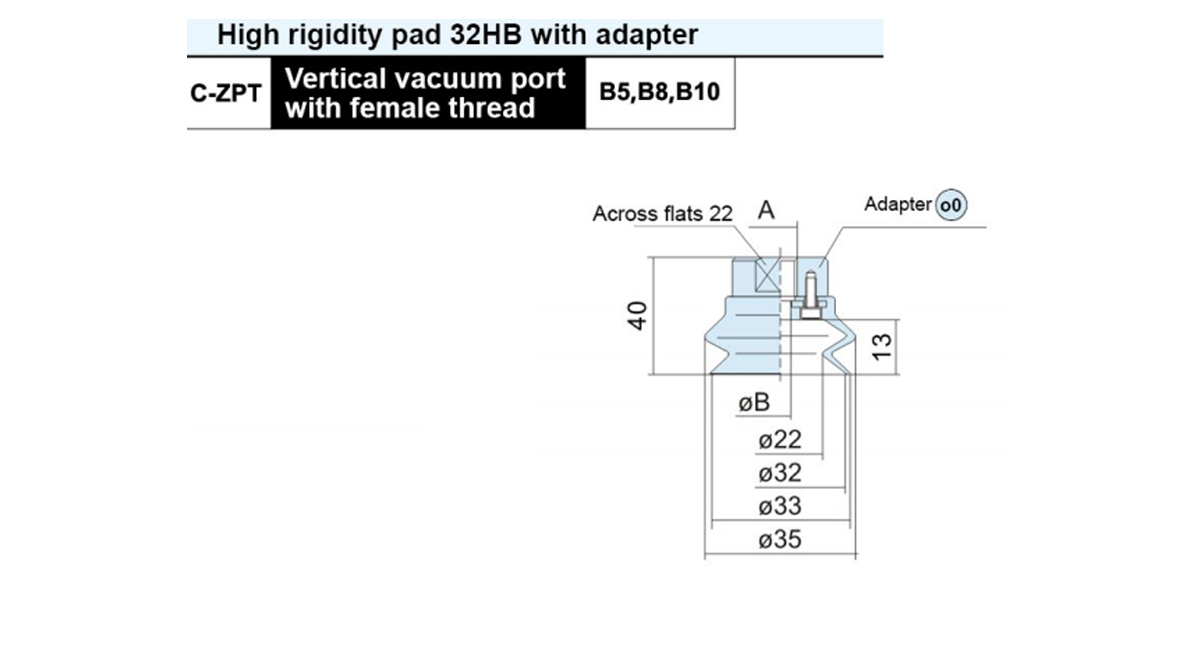

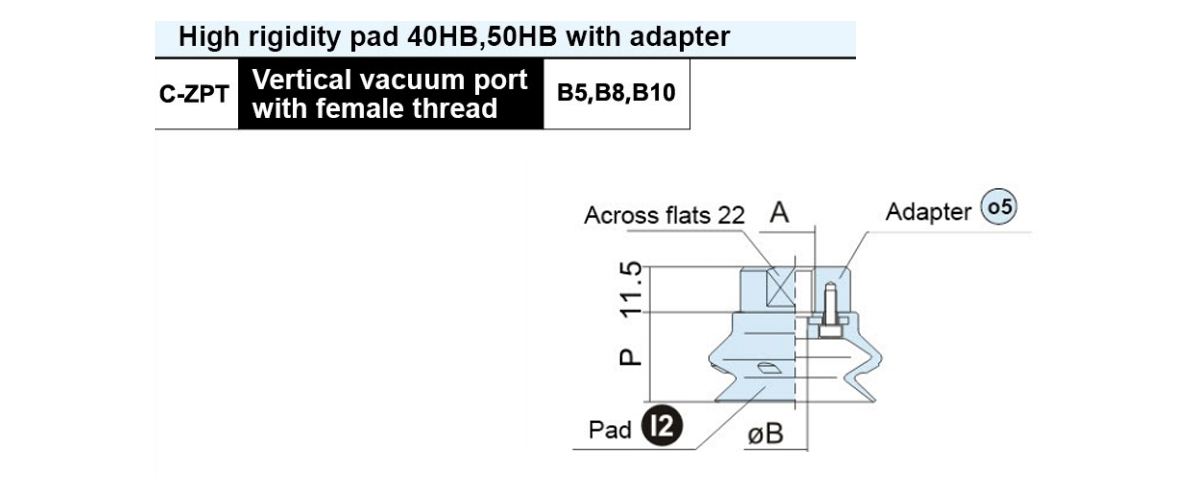

Model	A	ØB	Adaptor Model
C-ZPT32HB □ -B5	M5×0.8	4.2	ZPT0-B5
C-ZPT32HB □ -B8	M8×1.25	5	ZPT0-B8
C-ZPT32HB □- B10	M10×1.5	5	ZPT0-B10
□ Pad material:NBR(N),Silicone rubber(S)

Model	L	Adaptor Model
C-ZPT32HB □ -A14	25	ZPT0-A14
C-ZPT32HB □-A14-3	40	ZPT0-A14-3
□ Pad material:NBR(N),Silicone rubber(S)

Model	A	Adaptor Model
C-ZPX32HB □- B8	M8×1.25	ZPX0-B01-B8
C-ZPX32HB □-B10	M10×1.5	ZPX0-B01-B10
C-ZPX32HB □- B12	M12×1.75	ZPX0-B01-B12
□Pad material:NBR(N),Silicone rubber(S)

Model	A	E	L	Adaptor Model
C-ZPR32HB □-◇ -A6	M6×1.0	8	66	ZPROH-◇-A6
C-ZPR32HB □-◇- A8	M8×1.0	12	56	ZPROH-◇-A8
□Pad material:NBR(N),Silicone rubber(S) ◇ Vacuum inlet connection:04,06,08

Model	A	D	Adaptor Model
C-ZPR32HB □-◇- B5	M5×0.8	5	ZPROH-◇-B5
C-ZPR32HB □-◇- B6	M6×1.0	6	ZPROH-◇-B6
C-ZPR32HB □-◇ -B8	M8×1.25	8	ZPROH-◇-B8
□Pad material:NBR(N),Silicone rubber(S) ◇ Vacuum inlet connection:04,06,08

Model	A	B	C	L	m2 O0 Buffer Support Model
C-ZPT32HB □● 10-B5-A14	M5×0.8	10	50	77	ZPTO-●10-B5-A14
C-ZPT32HB □● 20-B5-A14		20		81	ZPT0-●20-B5-A14
C-ZPT32HB □● 30-B5-A14		30		91	ZPT0-●30-B5-A14
C-ZPT32HB □● 50-B5-A14		50	75	136	ZPT0-●50-B5-A14
C-ZPT32HB □● 10-B01-A14	Rc1/8	10	50	78.5	ZPT0-●10-B01-A14
C-ZPT32HB □● 20-B01-A14		20		84	ZPT0-●20-B01-A14
C-ZPT32HB □● 30-B01-A14		30		94	ZPT0-●30-B01-A14
C-ZPT32HB □● 50-B01-A14		50	75	139	ZPT0-●50-B01-A14
●Height compensator type:Rotative(J) □Pad material:NBR(N),Silicone rubber(S) Unable to rotate(K)

Model	B	C	L	m4 O4 Buffer Support Model
C-ZPR32HB □● 10 -◇- A14	10	50	80	ZPR0-●10-◇ -A14
C-ZPR32HB □● 20 -◇ -A14	20		77	ZPRO-●20-◇-A14
C-ZPR32HB □● 30 -◇- A14	30		87	ZPR0-●30-◇-A14
C-ZPR32HB □● 50 -◇ -A14	50	75	132	ZPR0-●50-◇-A14
□Pad material:NBR(N),Silicone rubber( ) ●Height compensator type:Rotative(J) ◇Vacuum inlet connection:04,06,08 Unable to rotate(K)

Model	A	L	q1 O0 Buffer Support Model
C-ZPT32HB □● 25-B01-A18	40	95.5	ZPB0 ● 25-B01-A18
C-ZPT32HB □● 50-B01-A18	75	130.5	ZPB0 ● 50-B01-A18
C-ZPT32HB □● 75-B01-A18	111	166.5	ZPB0 ● 75-B01-A18
□Pad material:NBR(N),Silicone rubber(S) ●Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	L	q2 O2 Buffer Support Model
C-ZPX32HB □● 25-B01-A18	40	91	ZPX0 ● 25-B01-A18
C-ZPX32HB □● 50-B01-A18	75	126	ZPX0 ● 50-B01-A18
C-ZPX32HB □● 75-B01-A18	111	162	ZPX0 ● 75-B01-A18
□Pad material:NBR(N),Silicone rubber(S) ●Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	B	Pad Diameter P		Adaptor Model
			40	50
C-ZPT ○ HB □ -B5	M5×0.8	4.2	20.5	24	ZPT1-B5
C-ZPT ○ HB □- B8	M8×1.25	5			ZPT1-B8
C-ZPT ○ HB □- B10	M10×1.5				ZPT1-B10
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S)

Model	L	○Pad Diameter		P	Adaptor Model
		40	50
C-ZPT ○ HB □ -A14	25	20.5	24		ZPT1-A14
C-ZPT ○ HB □ -A14-3	40				ZPT1-A14-3
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	○Pad Diameter P		Adaptor Model
		40	50
C-ZPX ○ HB □- B8	M8×1.25	20.5	24	ZPX1-B01-B8
C-ZPX ○ HB □- B10	M10×1.5			ZPX1-B01-B10
C-ZPX ○ HB □ -B12	M12×1.75			ZPX1-B01-B12
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	E	L	○Pad Diameter		P	Adaptor Model
				40	50
C-ZPR ○ HB □-◇ -A6	M6×1.0	8	66	20.5	24		ZPR1H-◇-A6
C-ZPR ○ HB □-◇ -A8	M8×1.0	12	56				ZPR1H-◇-A8
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ◇Vacuum inlet connection:06,08

Model	A	D	○Pad Diameter P		Adaptor Model
			40	50
C-ZPR ○ HB □-◇- B6	M6×1.0	6	20.5	24	ZPR1H-◇-B6
C-ZPR ○ HB □-◇- B8	M8×1.25	8			ZPR1H-◇-B8
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ◇ Vacuum inlet connection:06,08

Model	A	B	C	L	○ Pad Diameter P		m2 O5 Buffer Support Model
Model	A	B	C	L	40	50	m2 O5 Buffer Support Model
C-ZPT ○ HB □● 10-B5-A14	M5×0.8	10	50	77	20.5	24	ZPT1-●10-B5-A14
C-ZPT ○ HB□● 20-B5-A14		20		81			ZPT1-●20-B5-A14
C-ZPT ○ HB □● 30-B5-A14		30		91			ZPT1-●30-B5-A14
C-ZPT ○ HB□● 50-B5-A14		50	75	136			ZPT1-●50-B5-A14
C-ZPT ○ HB□● 10-B01-A14	Rc1/8	10	50	78.5			ZPT1-●10-B01-A14
C-ZPT ○ HB□● 20-B01-A14		20		84			ZPT1-●20-B01-A14
C-ZPT ○ HB □● 30-B01-A14		30		94			ZPT1-●30-B01-A14
C-ZPT ○ HB □● 50-B01-A14		50	75	139			ZPT1-●50-B01-A14
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Rotative(J),Unable to rotate(K)

Model	B	C	L	○ Pad Diameter P		m4 O9 Buffer Support Model
				40	50
C-ZPT ○ HB□● 10 -◇ -A14	10	50	80	20.5	24	ZPR1-●10-◇-A14
C-ZPT ○ HB □● 20 -◇ -A14	20		77			ZPR1-●20-◇-A14
C-ZPT ○ HB □● 30 -◇ -A14	30		87			ZPR1-●30-◇-A14
C-ZPT ○ HB □● 50 -◇- A14	50	75	132			ZPR1-●50-◇-A14
○Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Rotative(J),Unable to rotate(K) Vacuum inlet connection:06,08

Model	A	L	○ Pad Diameter P		q1 O 5 Buffer Support Model
			40	50
C-ZPT ○ HB □● 25-B01-A18	40	95.5	20.5	24	ZPB1 ●25-B01-A18
C-ZPT ○ HB □● 50-B01-A18	75	130.5			ZPB1 ●50-B01-A18
C-ZPT ○ HB □● 75-B01-A18	111	166.5			ZPB1 ●75-B01-A18
○ Pad diameter symbol:40,50 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	L	○ Pad Diameter P		q2 O7 Buffer Support Model
			40	50
C-ZPX ○ HB □● 25-B01-A18	40	95.5	20.5	24	ZPX1 ●25-B01-A18
C-ZPX ○ HB □● 50-B01-A18	75	130.5			ZPX1 ●50-B01-A18
C-ZPX ○ HB □● 75-B01-A18	111	166.5			ZPX1 ●75-B01-A18
○ Pad diameter symbol:40,50 □ Pad materal:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	○ Pad Diameter		P	Adaptor Model
		63	80
C-ZPT ○ HB□- B8	M8×1.25	31.5	37		ZPT2-B8
C-ZPT ○ HB□-B10	M10×1.5				ZPT2-B10
C-ZPT ○ HB□-B12	M12×1.75				ZPT2-B12
C-ZPT ○ HB □- B16	M16×1.5				ZPT2-B16
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S)

Model	P	Adaptor Model
C-ZPT63HB □- A16	31.5	ZPT2-A16
C-ZPT80HB □-A16	37	ZPT2-A16
□ Pad material:NBR(N),Silicone rubber(S)

Model	A	○ Pad Diameter P
		63	80
C-ZPX ○ HB□- B01-B8	M8×1.25	31.5	37
C-ZPX ○ HB□- B01-B10	M10×1.5
C-ZPX ○ HB□- B01-B12	M12×1.75
○ Pad diameter symbol:63,80 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	○ Pad Diameter P		q1 p1 Buffer Support Model
			63	80
C-ZPT ○ HB □● 25-B01-A18	40	95.5	31.5	37	ZPB2 ●25-B01-A18
C-ZPT ○ HB □● 50-B01-A18	75	130.5			ZPB2 ●50-B01-A18
C-ZPT ○ HB □● 75-B01-A18	111	166.5			ZPB2 ●75-B01-A18
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) □ Pad material:NBR(N),Silicone rubber(S) Brass(JB)

Model	A	L	○ Pad Diameter		P	q3 P Buffer Support Model
			63	80
C-ZPT ○ HB□● 25-B01-A22	44	118	31.5	37		ZPB2 ●25-B01-A22
C-ZPT ○ HB□● 50-B01-A22	80	154				ZPB2●50-B01-A22
C-ZPT ○ HB □● 75-B01-A22	120	194				ZPB2●75-B01-A22
C-ZPT ○ HB □● 100-B01-A22	155	229				ZPB2 ●100-B01-A22
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) Brass(JB) □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	○ Pad Diameter P		q2 p3 Buffer Support Model
			63	80
C-ZPX ○ HB □● 25-B01-A18	40	95.5	31.5	37	ZPX2 ●25-B01-A18
C-ZPX ○ HB □● 50-B01-A18	75	130.5			ZPX2 ●50-B01-A18
C-ZPX ○ HB □● 75-B01-A18	111	166.5			ZPX2 ●75-B01-A18
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) □ Pad material:NBR(N),Silicone rubber(S) Brass(JB)

Model	A	L	○ Pad Diameter P		q4 p3 Buffer Support Model
			63	80
C-ZPX ○ HB□● 25-B01-A22	44	118	31.5	37	ZPX2 ●25-B01-A22
C-ZPX ○ HB □● 50-B01-A22	80	154			ZPX2 ●50-B01-A22
C-ZPX ○ HB □● 75-B01-A22	120	194			ZPX2 ●75-B01-A22
C-ZPX ○ HB □● 100-B01-A22	155	229			ZPX2 ●100-B01-A22
○ Pad diameter symbol:63,80 ● Height compensator type:Aluminium alloy(J) Brass(JB) □ Pad material:NBR(N),Silicone rubber(S)

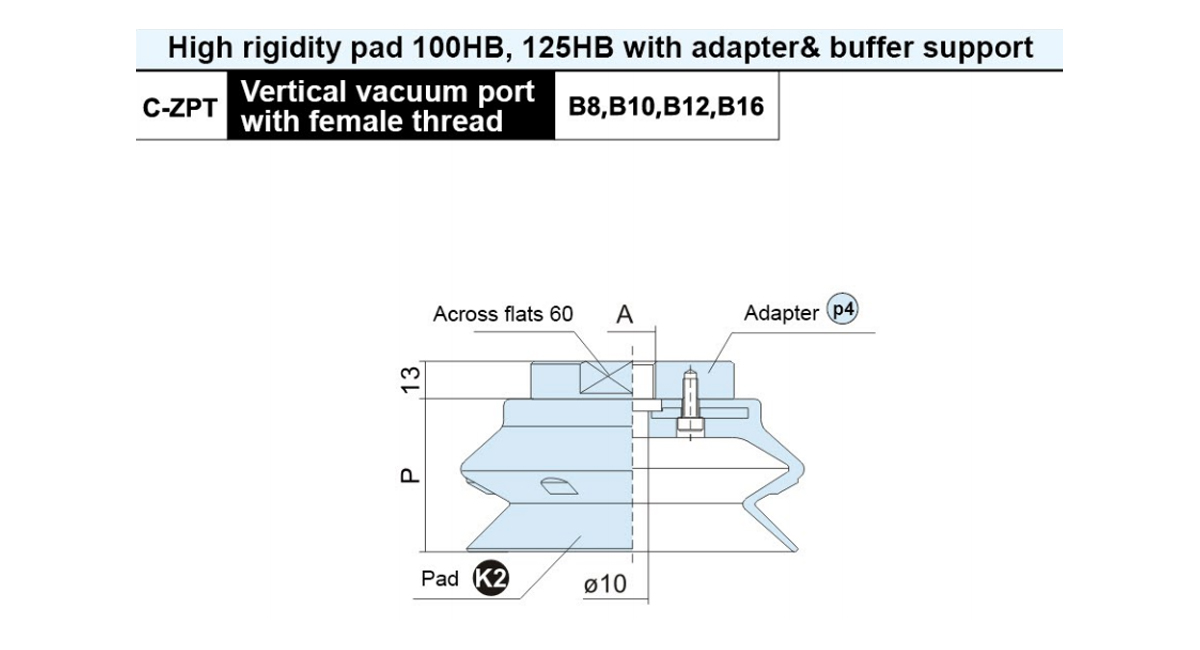

Model	A	○ Pad Diameter	P	Adaptor Model
		100	125
C-ZPT ○ HB □ -B12	M12×1.75	47.5	56	ZPT3-B12 ZPT3-B16
C-ZPT ○ HB □- B16	M16×1.5
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	. Pad Diameter		P	q3 p4 Bumper Support Model
			100	125
C-ZPT O HB □● 25-B01-A22	44	118	47.5	56		ZPB3 ●25-B01-A22
C-ZPT O HB □● 50-B01-A22	80	154				ZPB3●50-B01-A22
C-ZPT O HB □● 75-B01-A22	120	194				ZPB3 ●75-B01-A22
C-ZPT O HB □● 100-B01-A22	155	229				ZPB3 ●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	P	Adaptor Model
C-ZPT100HB □ -A16	47.5	ZPT3-A16
C-ZPT125HB □ -A16	56	ZPT3-A16
□ Pad material:NBR(N),Silicone rubber(S)

Model	A	○Pad Diameter P		Adaptor Model
		100	125
C-ZPX ○ HB□-B01-B10	M10×1.5	47.5	56	ZPX3-B01-B10
C-ZPX ○ HB□-B01-B12	M12×1.75			ZPX3-B01-B12
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	○ Pad Diameter P		q4 p6 Bumper Support Model
			100	125
C-ZPX ○ HB □● 25-B01-A22	44	118	47.5	56	ZPX3 ●25-B01-A22
C-ZPX ○ HB □● 50-B01-A22	80	154			ZPX3 ●50-B01-A22
C-ZPX ○ HB □● 75-B01-A22	120	194			ZPX3 ●75-B01-A22
C-ZPX ○ HB □● 100-B01-A22	155	229			ZPX3 ●100-B01-A22
○ Pad diameter symbol:100,125 □ Pad material:NBR(N),Silicone rubber(S) ● Height compensator type:Aluminium alloy(J),Brass(JB)

Model	A	Adaptor Model
C-ZPT150HB □ -B16	M16×1.5	ZPT4-B16
C-ZPT150HB □- B18	M18×1.5	ZPT4-B18
□ Pad material:NBR(N),Silicone rubber(S)

Model	A	L	q5 p7 Bumper Support Model
C-ZPT150HB □ JF20-B02-A30	35	118	ZPB4JF20-B02-A30
C-ZPT150HB □ JF50-B02-A30	75	154	ZPB4JF50-B02-A30
□ Pad material:NBR(N),Silicone rubber(S)

Blag & Nuacht

Ár Nuacht is Déanaí &
Blag

Féach Tuilleadh

2026/09/21

Teip Oscailte vs Teip Dún: Conas an Comhla Ceart a Roghnaigh do Chórais Aeroibrithe

An Freagra Díreach: Cad a Tharlaíonn I ndáiríre Nuair a Chailltear Cumhacht Nuair a chailleann comhla aeroibrithe a comhartha rialaithe nó a chumhacht leictreach, ní fhanann sé ina seasamh re...
Léigh Tuilleadh
2026/09/14

Treoir maidir le Sorcóir Aeroibrithe: Cineálacha, Roghnú & Feidhmchláir d'Uathoibriú | CKT

Bunúsacha Sorcóir Aeroibrithe: Na rudaí is gá duit a bheith ar eolas ar dtús Is actuator meicniúil é sorcóir aeroibrithe a thiontaíonn fuinneamh an aeir chomhbhrúite ina fhórsa líneach agus ina ghlu...
Léigh Tuilleadh
2026/09/07

Treoir Sorcóir Gníomhach Dúbailte: Prionsabail Oibre, Cineálacha, Leideanna Roghnúcháin agus CCanna

I gcás beagnach gach meaisín uathoibrithe a dteastaíonn gluaiseacht líneach beacht in-athdhéanta de, a sorcóir dúbailte ag gníomhú di Is é an rogha caighdeánach. Tá an chonclúid simplí: nuair a...
Léigh Tuilleadh
2026/08/31

Bairille Sorcóir Aeroibrithe: Ábhair, Cineálacha, Lamháltais, agus Treoir Roghnúcháin

An Bairille Sorcóir Aeroibrithe An Áit a bhfuil Cáilíocht Sorcóra ina Cónaí I ndáiríre Mura cuimhin leat ach rud amháin faoi bairillí sorcóir aeroibrithe, coinnigh é seo: sainmhíníonn an bairille rá...
Léigh Tuilleadh

Cáilíocht Dhílis Iontaofa a Sheasann Amach go Nádúrtha.

Tagann rogha ó mhuinín, agus tagann comhoibriú ó ionracas.

C: Cé chomh luath agus is féidir linn freagra a fháil tar éis dúinn fiosrúchán a sheoladh chugat?

Tabharfaimid freagra duit laistigh de 24 uair an chloig tar éis dúinn an fiosrúchán a fháil i laethanta oibre.
C: An monaróir díreach nó cuideachta thrádála tú?

Tá muid ag monaróir, agus tá roinn díolacháin idirnáisiúnta againn féin. Mar sin is féidir linn go léir a tháirgeadh agus a dhíol linn féin.
C: An féidir leat táirgí saincheaptha a dhéanamh?

Sea, is féidir linn táirgí a fhorbairt agus a tháirgeadh de réir na líníochtaí nó na samplaí a sholáthraíonn custaiméirí.
C: Conas a ráthaíonn do chuideachta cáilíocht an táirge?

Ar an gcéad dul síos, déanfaimid an t-iniúchadh tar éis gach próiseas. Maidir leis na táirgí críochnaithe, déanfaimid iniúchadh 100% de réir riachtanais na gcustaiméirí agus an chaighdeáin idirnáisiúnta.
C: Cá háit a ndéantar do tháirgí a onnmhairiú go príomha?

Déantar ár gcuid táirgí a onnmhairiú go príomha go dtí an Ghearmáin, na Stáit Aontaithe, an Danmhairg agus níos mó ná dosaen tír san Eoraip agus i Meiriceá Thuaidh

Teanga

Faoi

Nuacht
